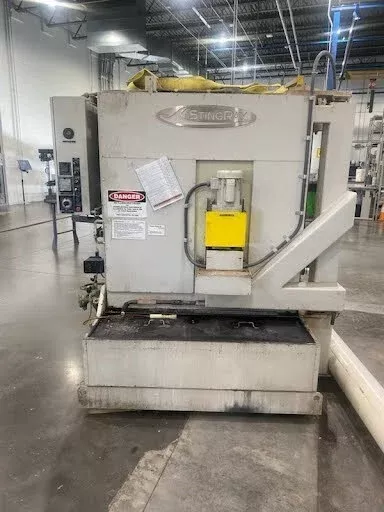

STINGRAY 4040

Turntable diameter: 41″
Cleaning work height: 39″
Table load maximum: 1,500 Lbs.
Operating temperature: 140°F – 180°F
Initial heat up time: 45 – 60 Mins.
Heat source: Electric
Power: 45 kW
Vee-Jet wash nozzles: 16
Oscillating manifold speed: 4 RPM
Pump power: 40 HP
Total system flow: 268 GPM
Flow per nozzle: 16.8 GPM
System pressure: 165 PSI
Blast velocity: 156 FPS
Reservoir capacity: 180 Gals.
Electrics: 460V/104 FLA
Dimensions: 79″(L-R) x 74″(F-B) x 83″(H)
Weight empty: 3,900 Lbs.
40 HP Pump upgrade
Heated wash-rinse
Oil skimmer
Start stop timer
7 day clock
Clock override
Digital temperature controller
Turntable jog
Steam exhaust
Injection pump soap fluid controller
Invertek drives
Adjustable pump pressure controller
