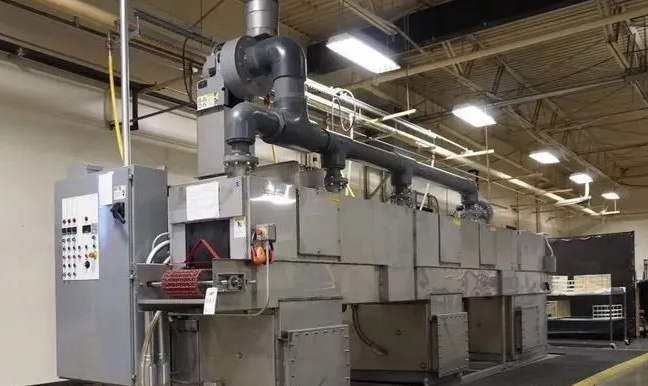

Stoelting AQUAFORCE

Dimensions 23'-6" L x 7'-9" W x 10' T
Weight 7500 lbs.
12 x 12 3 Stage Parts Washer
Frames 10 GA Painted Carbon Steel
Tanks 14 GA Stainless Steel
Canopies 14 GA Stainless Steel
Dryer Construction Stainless Steel
Chip Baskets Stainless Steel
Piping Stainless Steel
Spray Tubes Stainless Steel
Pumps Stainless Steel
Easy Access Doors
Tank Cleanout Doors
Conveyor Belt Nylon Glass Belting
Conveyor Width 12"
Mesh 1/2x1 Standard Weight 3/8" Thick Nylon Glass
Maximum Part Height 12"
Incoming Water Nominal 40 PSI, Max 125 PSI
Electrical 460 Volt 3 Phase, 60 HZ, 134 FLA
Load 1'
Wash 5'
Canopy 2'-6"
Rinse 7'
Canopy 2'
Heated Blow-Off 5'
Unload 11"
Load Height From Floor to Belt 3'-11"
Wash Tank 150 Gallon, 54 GPM, 3 HP Stainless Pump
Wash Tank Electric Heat 31.5 KW, 140 Deg. F.
Rinse Tank 150 Gallon, 36 GPM, 3 HP Stainless Pump
Rinse Tank Electric Heat 31.5 KW, 140 Deg. F.
Dryer 9000 CFM, 5 HP, 250 Deg. F, 24 KW
