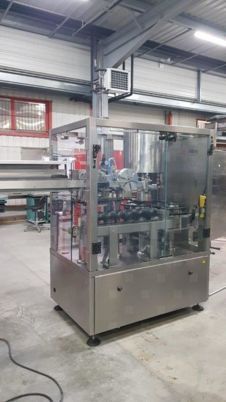

Stone DC6 / CTF6 OVERCAPPING MACHINE

A USED CAP DISPENSING / OVERCAPPING (SMOOTHING) MONOBLOCK MACHINE
Type DC 6 / CTF 6 - STONE INDUSTRIE
Accepts all cylindrical glass bottles with a diameter
of 55 to 108 mm and a height of 210 to 400 mm
Completely refurbished at the factory in 2022
Complies with current CE standards

DC6 CAP DISPENSER:
- Ejection of tin/aluminum/complex overcaps by
a pneumatic blower system - For whole sticks
- length 750 mm - Switch to force the deactivation of the unstacking needles
+ Bottle selection and pitch adjustment by worm screw
+ Automatic placement of caps on bottle necks by barrel (6 (cells) for dispensing
+ Safety: bottle without cap = no cap installation
+ Pneumatic safety pusher at the outlet
+ Cap presence monitoring on bottle at the dispenser outlet with alarm
(only for caps with a metal top disc)

6-HEAD ROTARY OVERCAPPING MACHINE:
+ 6 smoothing heads for overcapping caps
+ Rotating roller overcapping heads with removable bases
+ Centering cone for tin caps
+ Drive with progressive head start
+ Heads can rotate in both directions
+ Head rotation speed variation by frequency variation
+ Vertical movement of the bottle on compensated saddles by stainless steel cam and counter-cam
+ Lubrication-free external stainless steel saddles
+ With multi-format inlet and outlet starwheels
