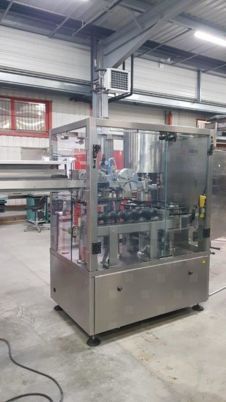

Stone OVERCOUCHER DC6 / CTF6

Allowing all cylindrical glass bottles diameter 55 to 108 mm – height 210 to 400 mm
Completely renovated factory in 2022
Complies with current EC standards
Guarantee 1 year : parts and labor

DC6 CAPSULE DISTRIBUTOR :
- ejection of tin / aluminum / complex overclogging capsules by a pneumatic wind tunnel system - For whole sticks - length 750 mm - Switch to force the deactivation of unstacking needles
+ Selection of bottles and stepping by endless screws
+ Automatic installation of the capsules on the bottle necks per barrel (6 cells) of distribution
+ Safety: bottle without cap = no capsule laying
+ Safety pneumatic thruster at the output
+ Presence control capsules on bottle at outlet distributor with alarm
(only on capsule with metal top pellet)

ROTARY OVERMOUCHER 6 HEADS :
+ 6 smoothing heads for overclogging capsules
+ Rotating roller overclogging heads with removable bases
+ Centering cone for tin capsules
+ Training with progressive start of the heads
+ Possible rotation of heads in 2 directions
+ Change in rotational speed of the heads by frequency variation
+ Vertical movement of the bottle on compensation harnesses by cam and against stainless steel cam
+ External stainless steel harnesses without lubrication
+ With multi-format input and output stars
