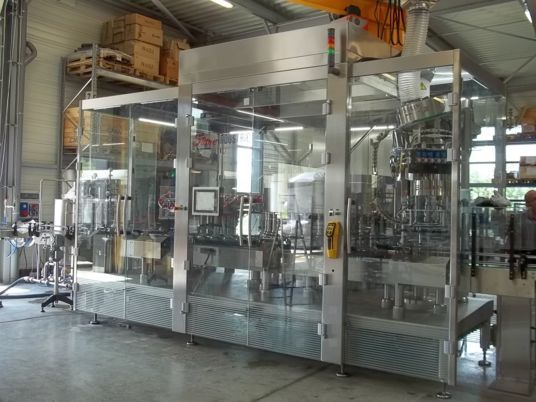

Stone RTBT GSA

Monobloc rinsing-vinification / draft /
capping wood head type RTBt GSA
24x30x4 - Capacity 6,000 BPH

- Analog pressure switch for water presence monitoring
- Constant level filling by simple gravity, with direct topping, without re-aspiration
- Millimeter adjustment of the head clearance during drafting (range 35 to 120 mm) by simply pressing a control button.
- 19 mm 316 stainless steel spouts, with laminar flow and central air return
with centering cones and rings that can be quickly replaced depending on the neck profile.
- T4/320 type 4-head rotary capping turret (Zalkin)
- All-stainless steel sloping frame for improved cleaning and reduced water consumption.
- Electronic turret synchronization
- CIP tank and accessory island
- Heightened and upper enclosure for the peripheral protections (stainless steel + safety glass) to create a closed enclosure.
Filtered air overpressure (ISO class 5)
