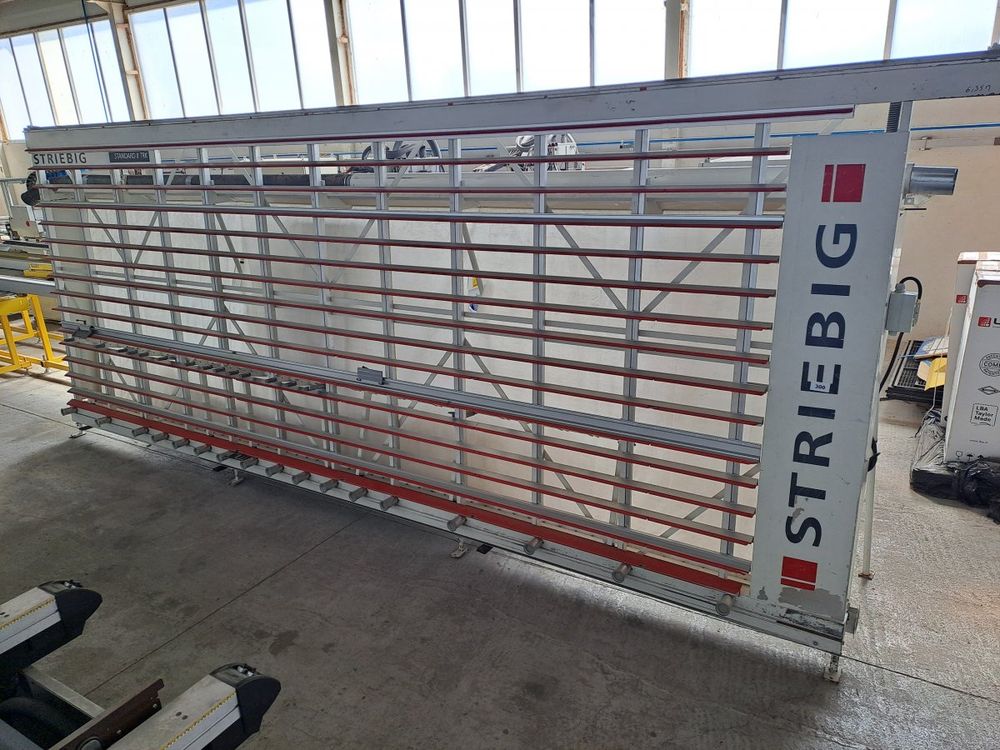

Striebig 6220A Standard TRKII

Panel Saw
Condition: Used

Technical specifications:
Cutting dimensions: 5300 x 2240 x 80 mm. Always the benchmark.
The STANDARD has become the global benchmark in the vertical panel saw sector for over 40 years.
Its equipment level is universal.
The integrated horizontal repetitive cut stop facilitates series sawing, and the fixed-dimension adjustment guarantees precision for recurring dimensions.
Its design has become a standard and has become a standard.
We offer the STANDARD in two versions of the TRK system: dust limit value significantly below 2 mg/m³ (TRK2) and significantly below 1 mg/m³ (TRK1).

Saw Frame
Workpieces manufactured with precision to within 1/100 of a mm
The robust, welded saw frame is extremely torsionally rigid.
Automatically retractable support surface with aluminum supports (and plastic inserts).
Automatically retractable support surface for large wood panels.
Up to 17 ball-bearing support rollers.
Full-length aluminum intermediate supports, retractable in 2 sections (except 4... models).
Aluminum supports for small workpieces (2 individual sections).

Saw Bar
Sturdy, durable, one-piece steel construction.

Sawing Unit
Perfect squareness thanks to a double locking mechanism on the saw beam.
The robust, ball-bearing support of the motor carriage ensures optimum cutting precision.
Powerful 5.5 kW (7.5 HP) motor for smooth, vibration-free operation.
Carbide-tipped saw blade Ø 300/30 mm
Saw blade with 9 mm projection
Integrated stop for repetitive horizontal cuts
"Super-silent" system to reduce blade noise
Mechanical motor brake
Design, ergonomics
Specific design for STRIEBIG products
Intuitive operation and user-friendly ergonomics
