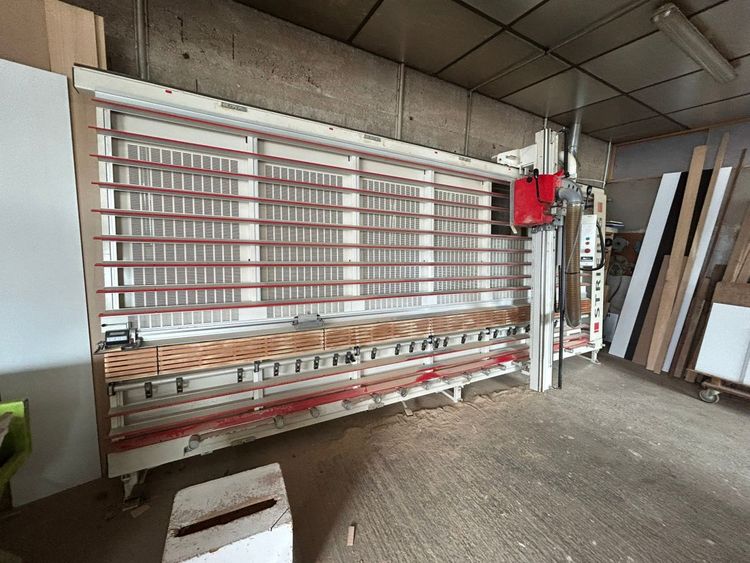

Striebig COMPACT 5207

Vertical Panel Saw
Condition: Used

Enter the era of quality and precision.
The COMPACT is the version that allows you to enter the era of precision and quality in STRIEBIG vertical panel saws.
The COMPACT is characterized by flexible and cost-effective use.
It is the perfect combination of ergonomics and functionality with high-quality results.

-The saw frame:
Manufactured with 1/100 mm precision
Mechanically welded and robust, the saw frame is extremely torsionally rigid
Backing plate with aluminum supports (and plastic inserts) that retract automatically
Up to 17 support rollers on ball bearings
Full-length aluminum intermediate supports, retractable in 2 parts (except for models 4...)
Full-length support for small pieces of wood, integrated into the retractable backing plate

-Saw bar:
One-piece steel construction, strong and durable

-Sawing unit:
Functional and ergonomic design
The robust bearing support of the motor carriage ensures optimal cutting precision
Powerful 3.9 kW (5.3 HP) motor for smooth, vibration-free operation
Carbide saw blade Ø 250/30 mm
Adjustable cutting depth from 9 to 13 mm
"Super-silent" system to reduce blade noise
Electromagnetic motor brake

-Design, ergonomics:
Specific design of STRIEBIG products
Intuitive and logical operation

Technical specifications:
-Max. cutting width: 4600 mm
-Max. horizontal cutting height: 1958 mm
-Max. vertical cutting height: 2070 mm
-Max. working thickness 60 mm
- Saw blade diameter: 250 mm
- Blade bore: 30 mm
- Lower support: Fixed rollers
- Material support: Aluminum slat frame with plastic coatings
- Small workpiece support: Yes
- Measuring system: Scale
- Saw head tilt: Manual
- Mounting: Self-supporting
- Scoring unit: With blade
- Weight approx.: 700 kg
- Motor power: 3 kW
- Dust extraction diameter: 2 x 100 mm
