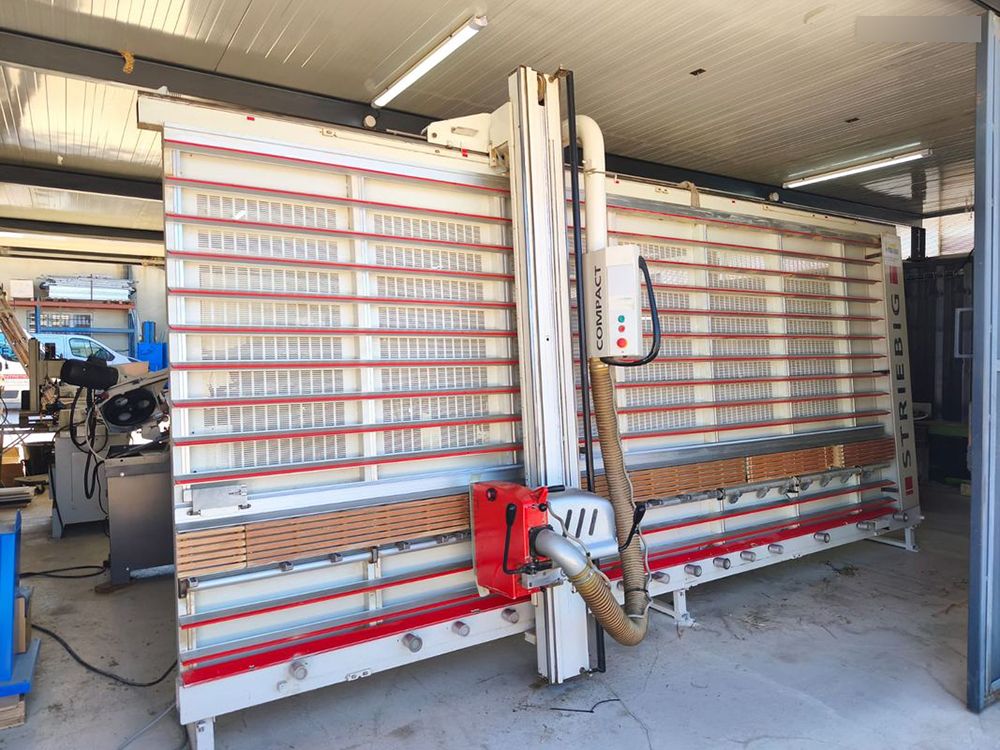

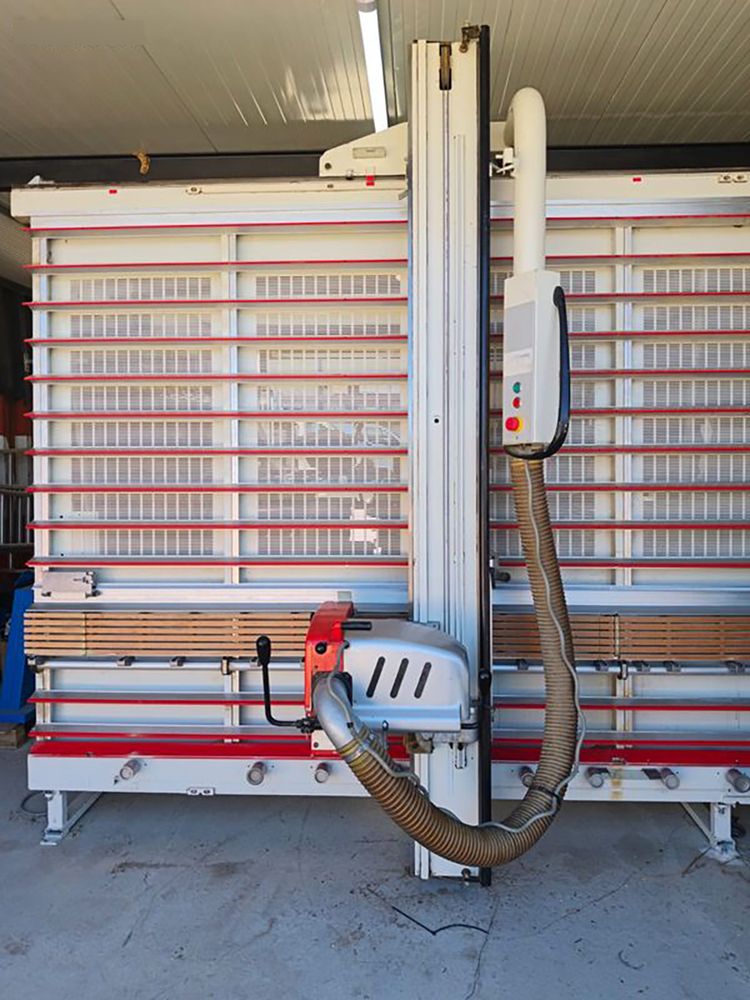

Striebig Compact Type 5220

. Used vertical panel saw — Very good condition
. Cutting capacity: 4600 x 2200 x 60 mm (W x H x max. thickness).
. One-piece, mechanically welded frame, resistant to deformation during transport; structure planed to 1/10th of a mm and ground to 1/100th of a mm.
. Frame with guyed supports (no wall mounting possible) — 3 guyed supports for the 5000 range.
. Frame automatically retracts for easier operations.
. Bearing-mounted support rollers (12 to 17 depending on length) for optimal panel support and translation.
. Support surface with aluminum slatted grid and synthetic strips (red PVC) retracts depending on the blade position.
. Integrated wood support for cutting small pieces along the entire length.
. Folding rail along the entire length of the frame for an ergonomic position — aluminum support fingers.
. COMPACT length stop with flap for small pieces.
. Mechanically welded, machined, and ground saw beam with manual mechanical locking every 1 m.
. Mirror for viewing the beam's anchor points; indicator rulers for horizontal cuts.

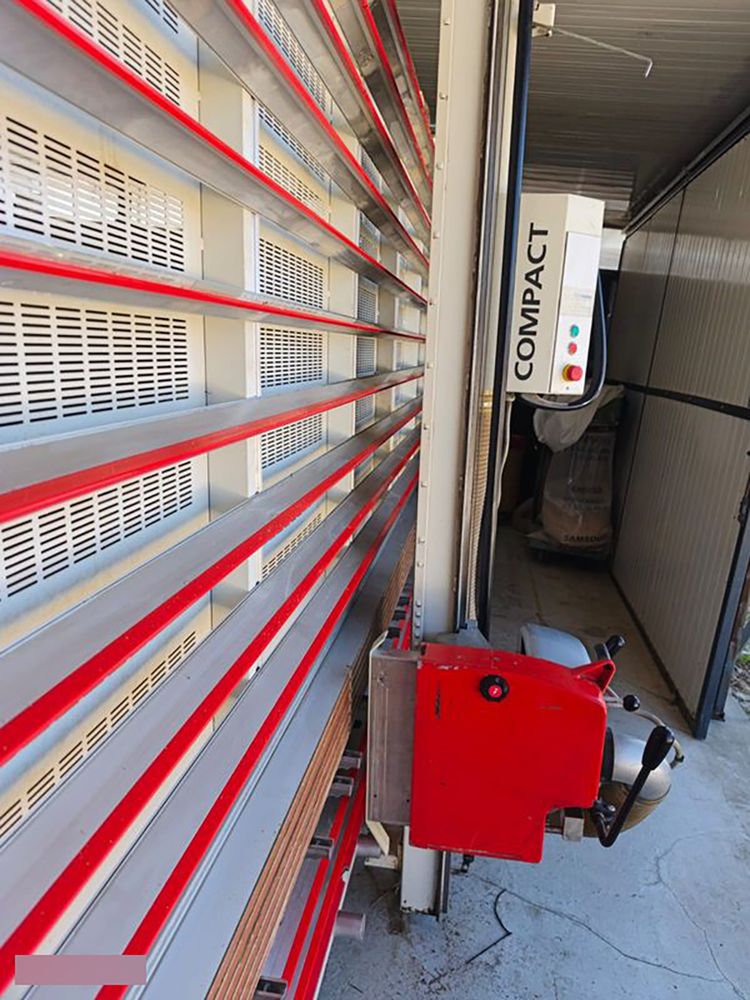

. Saw carriage: manual vertical/horizontal tilting, automatic locking; manual up/down feed; counterbalanced by self-guided counterweight.
. Automatic mechanical plunge device for vertical cutting (except certain types).
. "Supersilent" device to dampen motor/blade noise.
. Motor and saw spindle: 3.9 kW (5.3 hp) — 5250 rpm — HM 250/30 mm blade — electromagnetic blade braking.
. Extraction connection: 2 inlets to be connected by Ø 160 mm pipe — minimum air speed 20 m/s — minimum flow rate 1500 m³/h (units/pipes not supplied).
. 2 Ø 100 mm extraction inlets supplied (1 at the top of the beam on the right — 1 at the rear, bottom right) — upper position can be moved to the left side during assembly.
. Ruler-based dimension display for vertical and horizontal cuts.
. Repetitive cutting system: unit for repetitive horizontal cuts (maximum strip height 600 mm).

TECHNICAL DATA:
. Cutting capacity (W x H x thickness): 4600 x 2200 x 60 mm.
. Condition: Very good condition.
. Frame: One-piece mechanically welded, planed to 1/10th of a mm, ground to 1/100th of a mm.
. Number of support rollers: 12 to 17 depending on frame length.
. Stay holders: 3 (for 5000 range).
. Maximum cutting thickness: 60 mm.
. Motor: 3.9 kW — 5250 rpm — 250/30 mm HM blade.
. Braking: Electromagnetic.
. Extraction: Two Ø100 mm inlets supplied — Ø160 mm connection required — minimum flow rate 1500 m³/h, minimum speed 20 m/s.
. Stop system and rulers for horizontal and vertical cuts.
. Repetitive cutting: maximum strip height 600 mm.
. Ergonomic features: folding rail, retractable support surface, integrated wood support.
