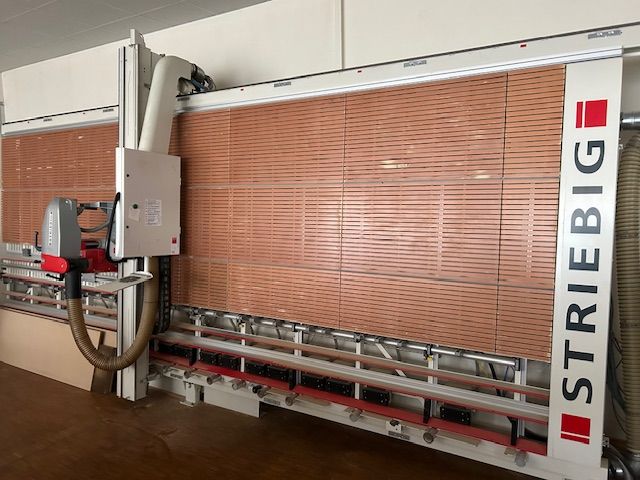

Striebig CONTROL (09) 6224

Panel Saw
Cutting area (length × height): 5300 × 2240 mm
Max. cutting depth: 80 mm
5.5 kW motor

Four-sided trimming (4SB)
Automatic top trimming (ABO)
Automatic bottom trimming
Scoring saw unit (VSA)
Digital measuring system (DMS) - both axes
Automatic saw beam locking with interface detection
Laser-assisted display of the horizontal cut
Automatic locking and swiveling of the saw unit
Automatic infeed and outfeed movement of the saw unit
Automatic fine adjustment of the saw motor
Full-surface support wall made of birch plywood with integrated small parts support
Selectable cutting cycle
Visualization and operation via 7.5" color touchscreen display

Dimensions (mm): approx. 6700 × 1750 × 2650
Weight: approx. 1200 kg
Good working condition (machine was only used for testing purposes)
