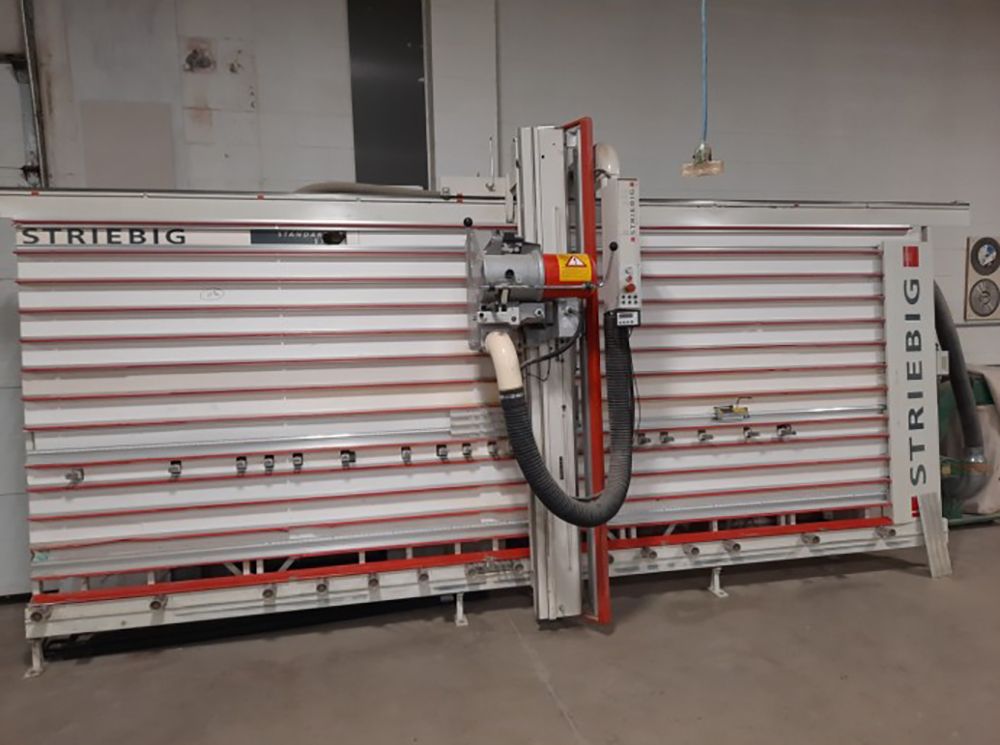

Striebig OPTISAW 3

Used PANEL SAW
Equipped with 220/440 volt., 60 Hz, 3 phase motor, 7.5 HP, and automatic Star-Delta starter.
One-piece fully welded frame.
Equipped with scoring. complete with carbide split scoring blade and special removable 12,000 RPM scoring spindle assembly.
Built-in dust extraction ducting. Note - must. be connected to central system.
Noise protection to below 77 d.
Carbide main blade dia. 300mm.
Splitting wedge can be swivelled in and out. with blade running. Auto return of splitter.
The rear supporting bars are not damaged during cutting, due to the patented deflecting device.
Equipped with small parts attachent., to allow cutting of small parts on the center shelf.
Equipped with special one-step locking for motor beam and carriage, with micro-adjust for horizontal cuts.

Equipped with blade cover safety interlocks and electronic motor braking.
Equipped with built-in depth setting device for dado and groove cuts.
Ready for free-standing or wall-mounted installation.

Horizontal cut: 14' 1".
Vertical Cut: 6' 3".
Cutting depth: 3-1/8".
Digitron 2 Digit.al Measuring- vertical-for horizontal.
