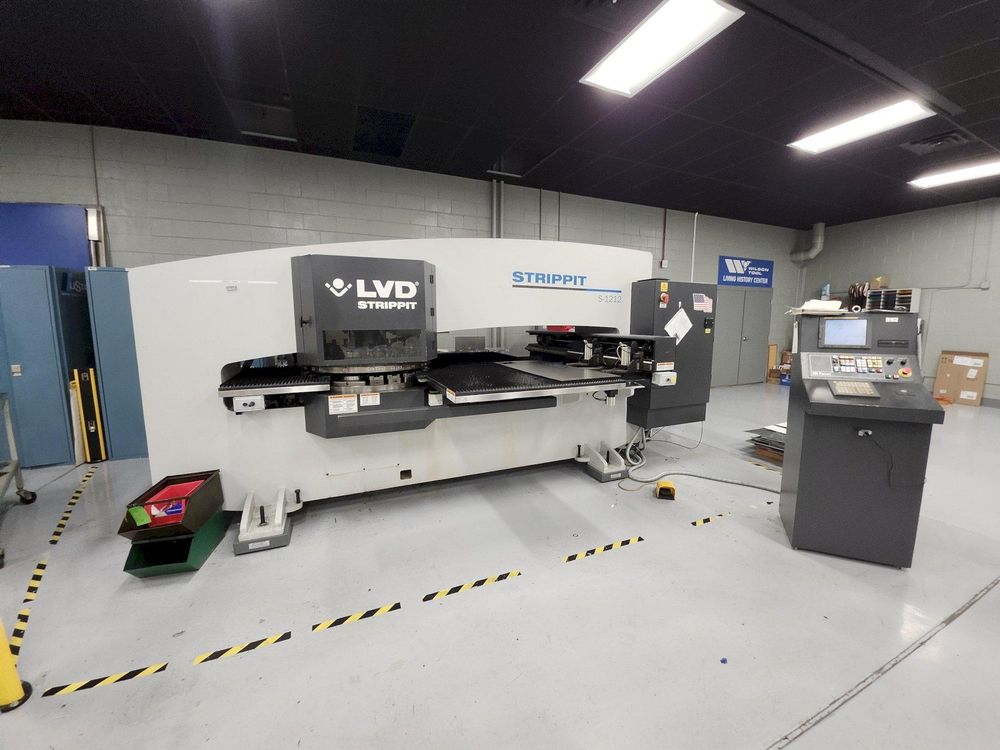

LVD, Strippit S-1212 20 tons

31 Station Turret
Thick Turret
GE Fanuc 180i-P CNC Control
583 Hours
Max Material Thickness 0.250" (6.35 mm)
Punching Accuracy ± 0.004" (± 0.1 mm)
Nominal Workpiece Size 49.21" x 49.21" (1250 x 1250 mm)
Brush Table up to 242 lbs. (110 kg)
2 Manual Floating Clamps
Maximum Clamp Spread 39.37" (1000 mm)
Feed Clearance 0.984" (25 mm)
Turret Layout - A 16 stations 0.5" (12.7 mm)
Turret Layout - B 10 stations 1.25" (31.7 mm)
Turret Layout - C 2 stations 2" (50.8 mm)
Turret Layout - D 3 stations 3.5" (88.9 mm)
Auto-Index Stations 3 stations 3.5" (88.9 mm)
Angular Positioning Accuracy ± 0.05 degree
Axis Traverse Speed Up to 4094 IPM (104 m/min) combined
Maximum Hit Rate at 2 mm working stroke 0.04" (1 mm) Feedrate Up to 900 HPM
Maximum Hit Rate at 2 mm working stroke 1" (25 mm) Feedrate Up to 360 HPM
Maximum Hit Rate at Marking Stroke Up to 1700 HPM
Dimensions 187" x 105" x 82"
Weight 20,200 lbs
Auto Repositioning
Clamping
Brush Table
31 Station Turret
Thick Turret
Auto Indexing 3-Stations
