Stromab CT 600 F

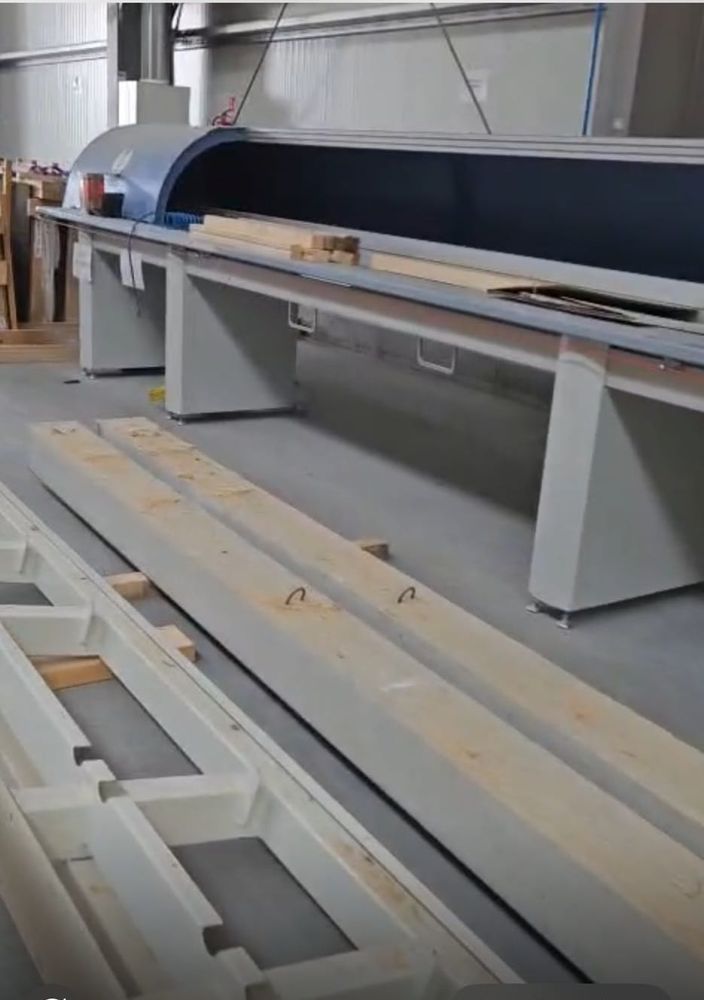

The BPRO TRUSS 6.80 F is an automatic cross-cut saw with a rotary table.
It is also equipped with a milling unit located in front of the main body.
The 280 mm diameter disc cutter is an essential tool for the efficient production of roof construction elements and wooden frame structures.
The advantage of having a milling unit is the elimination of errors and shortening the preparation time for the assembly of finished elements requiring milling.

Motor power 10 HP (7.5 kW)
Saw parameters 600 mm F = 30 Z = 48 S = 5
Infeed length (standard) 6000 mm
Maximum element width 410 mm
Maximum element height 200 mm
Saw rotation speed 2560 rpm
Feed speed 90 m
Operating pressure 8 bar
Power supply 400V 20A
Automatic table rotation +/- 80°
Table rotation speed from 0° to 80° in 3 s
Setting precision +/- 0.2°
Vertical clamps 2 pcs.
Horizontal clamps 2 pcs.
Sawdust outlet connectors N.2 Ø 100 mm and N.1 Ø 160 mm
Milling unit technical parameters
Head parameters Milling head diameter: max 280 mm
Milling bore diameter: 40 mm
Milling stroke: 400 mm
Milling head width: 30-60 mm
Milling depth adjustment (manual): 0-75 mm
Main motor power: 4 kW
Sawdust discharge ports: 3 pcs. Ø120 mm
Year: 2021, lightly used, in operation for 1 year.
Very good technical condition.
