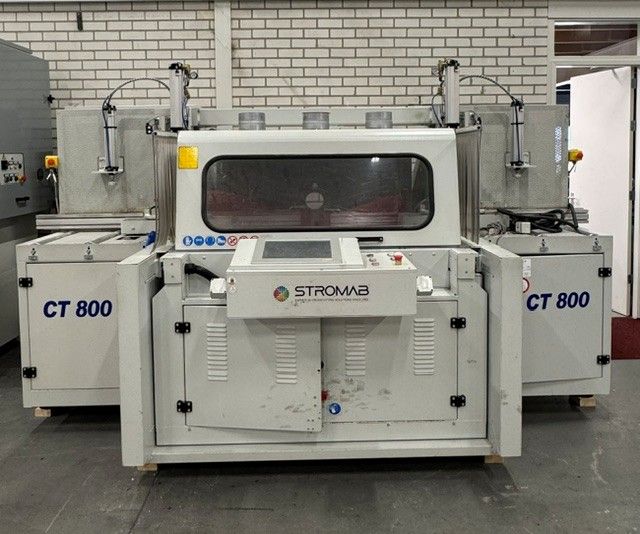

Stromab CT 800

Crosscut and dowel installation
motor power 20 HP
saw blade diameter 800mm
15'' touch screen control unit
USB / Ethernet port
Windows control
capability to store 10,000 different sawing programs
weight 2900 kg (without roller tables)

5 axes electronically controlled
saw blade rotation (0o - 340o)
saw blade tilt (90o - 45o) (inclination)
saw blade height adjustment up to 300mm
workpiece measuring and positioning system
positioning of the saw unit relative to the guide
Photocell for automatically reading the start of the workpiece. A pair of heavy vertical cylinders

Includes:
2 x roller conveyors per 5.5 meters (rollers ∅ 133mm)
Label printer
SDL CAD/CAM optimization
