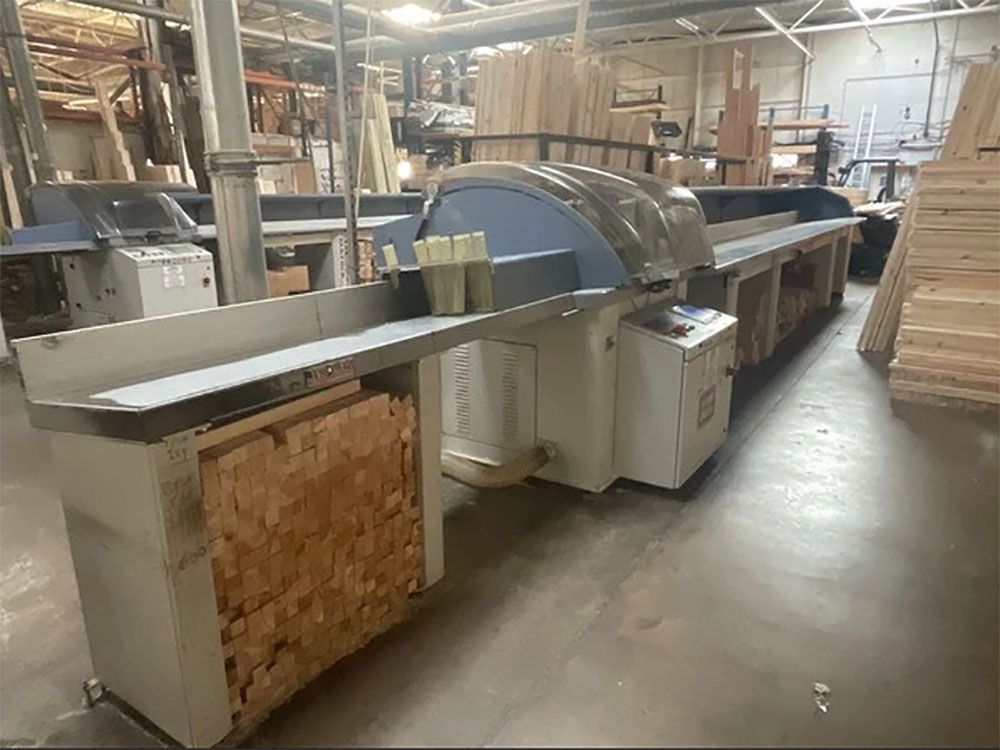

Stromab CT600

Automatic Upstroke Crosscut Saw for Straight and Angled Cutting
6000mm infeed capacity
2000mm Outfeed table
12" Touch screen graphic display
Power 1000 controller
Remote programming of cutting list via colour graphic touch screen controller - connection via USB key.
5 optimising criteria - longest size, minimum waste, priority size, by volume or by value.
Cutting list entered via controller key pad
Graphic description of the workpiece.
10hp motor
Rack & pinion drive system for pusher with magnetic reading strip to give a high level of repeat cutting accuracy
600mm diameter blade

Cutting Capacity Position A: (max height)
At 0°: mm. 200x215 or 50x370
At 30°: mm. 200x185 or 50x325
At 45°: mm. 200x150 or 50x265

Cutting Capacity Position B: (max width)
At 0°: mm. 160x315 or 40x410
At 30°: mm. 160x270 or 40x350
At 45°: mm. 160x220 or 40x285
Angle setting -70 degrees, 0 degrees, + 70 degrees

Adjustable saw stroke speed
Vertical clamping
Horizontal clamping
Dust extraction 1 off 100mm, 1 off 120mm.
Plexiglass hood with gas springs
