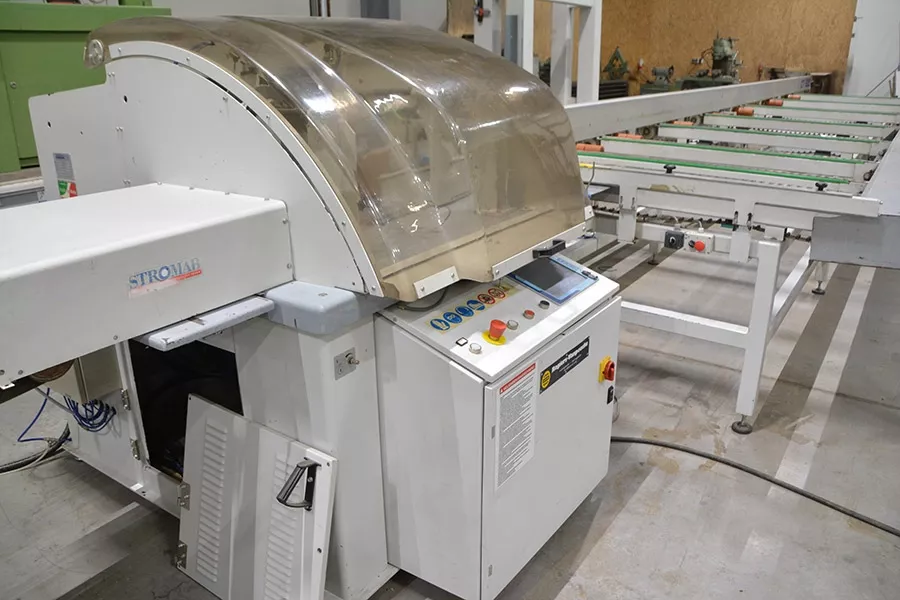

Stromab CT600

AUTOMATIC ANGLE SAW
Power supply: 400 V
Disc diameter: Ø 600 mm
Machine weight: 1820 kg
Motor power: 7.5 kW
Serial number: 260856
Infeed dimensions: 10,300 × 2,000 × 1,250 mm
Outfeed dimensions: 6,300 × 800 × 1,120 mm
Outfeed table dimensions: 5,000 × 1,250 × 910 mm
Rotation speed: approx. 2,600 rpm
Table rotation range: max. ±70°
Cutting height: approx. 200 mm (at 0°)
Maximum cutting width: approx. 410 mm
Minimum workpiece size: 20 × 10 mm
Positioning accuracy: ±0.4 mm
Cycle time: approx. 4 seconds per cut
Working height: 1000 mm
Sawdust extraction ports: Ø 100 mm
Beckhoff control with 12-inch touchscreen (Windows interface), 3D component visualization, cutting list import via USB/Ethernet
