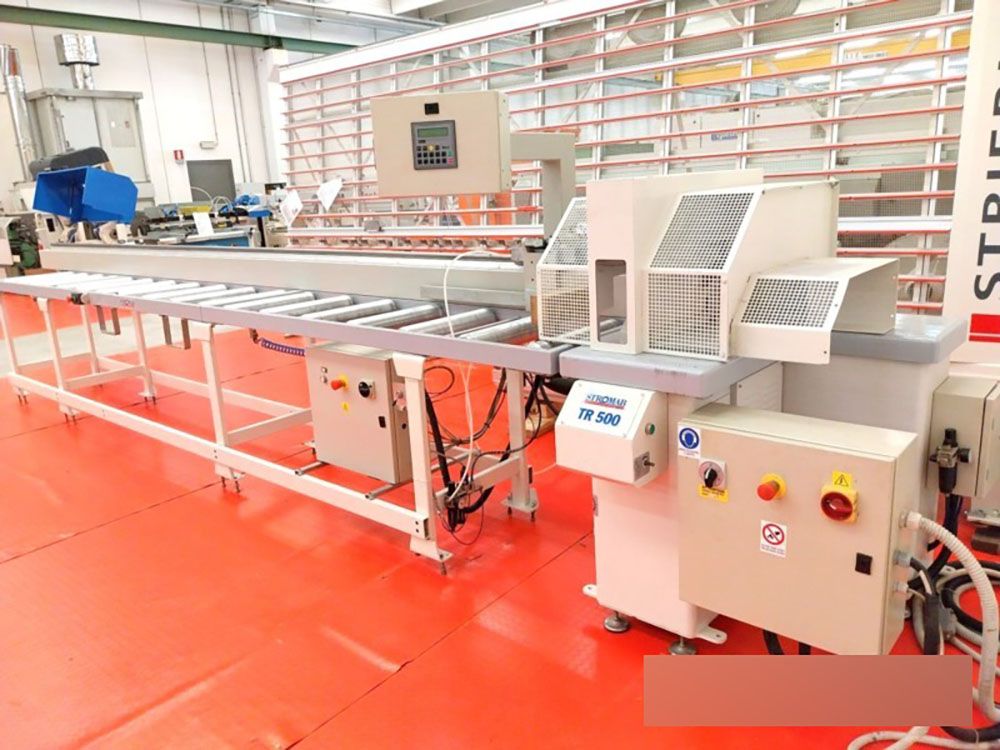

Stromab TR 500

Automatic cut-off saw with automatic measuring positioner, for wooden boards,
packaging, sawmills, joinery, wooden frames, various materials etc. - CE Standard

Technical data:
Blade diameter mm 500
Motor power Hp 10
Max cutting capacity width mm 360 - Height mm 135
Variable blade feed speed
Automatic measuring positioner: functions as stop and positioner
Length mm 5000
Positioning speed mt/min 40
Control panel
Automatic and semi-automatic working cycles
99 Programmable working cycles
15 Programmable sizes per cycle
Outfeed roller table
N° 3 Suction inlets diameter mm 100
Compressed air 8 bar
Overall dimensions of assembled machine: mm 9300 x 1400 x 1650 h
Overall dimensions for transport: Machine mm 1200 x 1400 x 1600 h
Weight kg 400 + Automatic positioner mm 5600 x 900 x 1650
Weight kg 300 + Roller conveyor mm 2500 x 1000 x 900 h - Weight kg 80
