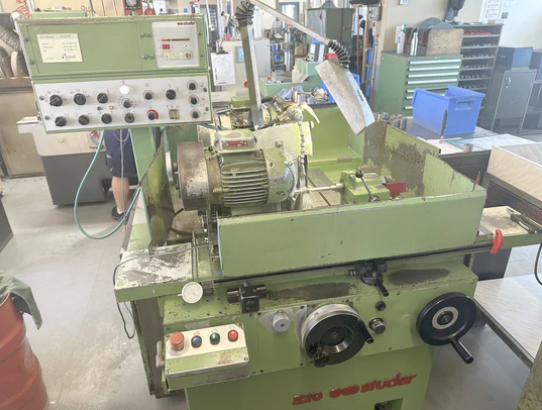

Studer S 20-2

Center Height: 100 mm
Distance Between Centers: 400 mm
Max Longitudinal Travel: 420 mm
Grinding Wheel Diameter: 350 mm
Grinding Wheel Width: 32 mm
Grinding Wheel Bore: 127 mm
Max Grinding Width: 50 mm
Table Load Max: 20 kg
Wheel Speed Range: 1600–2200 rpm
Wheel Peripheral Speed: 30 m/s
Hydraulic Cross Travel: 25 mm
Wheelhead Angular Displacement: 15+30°
Workhead Speed Range: 30–1200 rpm
Workhead Rotatable: 90°
Spindle Taper (Collets): W20
Spindle Taper: 4 CM
Tailstock Taper: 2 CM
Table Tilt: 30°
Table Speed: up to 4 m/min
Voltage 3x 380 V 50 Hz
Wheel Motor: 3 kW
Workhead Motor: 0.5 CV
Total Power Requirement: 10 kVA
Machine Weight: 1200 kg
Machine Length: 2500 mm
Machine Width: 1800 mm
Machine Height: 1700 mm

Features / Equipment
Tailstock with fine adjustment
Reversible dressing device
Lamp
Feed SENSITRON
