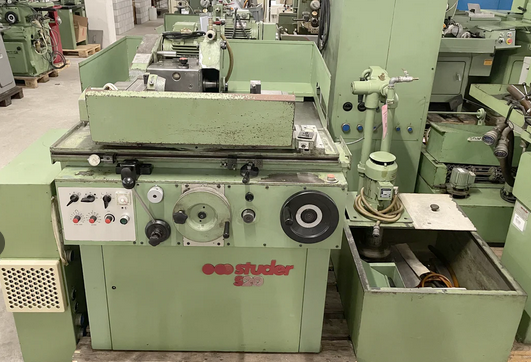

Studer S 20-OC

Centre Height: 80 mm
Distance Between Centres: 400 mm
Grinding Diameter: 80 mm
Grinding Length: 400 mm
Workpiece Weight (Max): 20 kg
Angular Displacement: 30°
Table Angular Displacement: 30°

Wheel Diameter: 300 mm
Wheel Width: 30 mm
Wheel Bore: 127 mm

Workpiece Spindle Speed: 60 – 1200 rpm
Spindle Head Rotation: 90°

Spindle Taper: 2 CM
Tailstock Taper: 2 CM

Table Speed: 100 – 3500 mm/min

Grinding Wheel Motor Power: 4.5 CV
Voltage: 3×380 V / 50 Hz

Machine Weight: ~1900 kg
Machine Dimensions: 1500 × 1400 × 1600 mm

Redressing Device
Coolant System
Tailstock with Fine Adjustment
Safety Device
