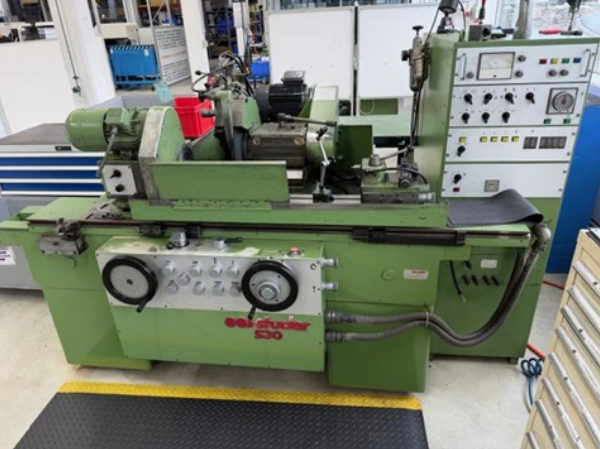

Studer S 30-12 F

Center Height: 125 mm
Distance Between Centers: 1025 mm
Longitudinal Travel: 800 mm
Cross Travel: 150 mm
Grinding Wheel Diameter: 450 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Max Workpiece Weight: 80 kg
Swivel Range: +90° / -30°
Grinding Wheel Speed: 1350 - 2220 rpm
Number of Speeds: 6
Hydraulic Cross Travel: 40 mm
Workhead Speed: 30 - 675 rpm
Workhead Rotation: 90°
Spindle Taper: CM5
Tailstock Taper: CM3
Table Angular Adjustment: 10°
Table Speed: up to 6 m/min
Voltage: 380 V
Frequency: 50 Hz
External Grinding Motor Power: 6.25 kW
Internal Grinding Motor Power: 1 kW
Weight: 2500 kg
Machine Length: 2700 mm
Machine Width: 1400 mm
Machine Height: 1600 mm
Control Length: 800 mm
Control Width: 500 mm
Control Height: 1600 mm
