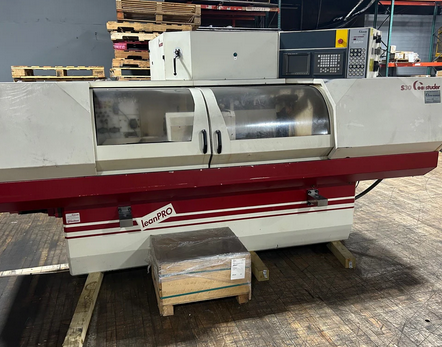

Studer S 30 LEAN PRO

Centre height: 175 mm
Distance between centres: 1,000 mm
Max workpiece weight on centres: 130 kg
Max grinding length: 1,050 mm
Grinding wheel left diameter: 400 mm
Grinding wheel left width: 80 mm
Grinding wheel left bore: 127 mm
Grinding wheel right diameter: 400 mm
Grinding wheel right width: 80 mm
Grinding wheel right bore: 127 mm
Turret grinding tool holder spindles: 3
Peripheral wheel speed: 35 m/s
Cross travel CNC: 275 mm
Feed speed: 0.001–5,000 mm/min
Rapid feed motion: 5 m/min
Longitudinal slide max travel: 275 mm
Work spindle speed: 30–1,000 t/min
Work spindle taper: MT 5
Tailstock taper: 3 CM
Tailstock travel: 35 mm
Table speed: 0.001–10,000 mm/min
Max table angular displacement: 5°
Voltage: 3× 400 V, 50 Hz
Grinding spindle motor: 7.5 kW
Total power required: 30 kVA
Machine weight: 4,800 kg
Machine dimensions: Length 4,500 mm × Width 2,300 mm × Height 2,200 mm
