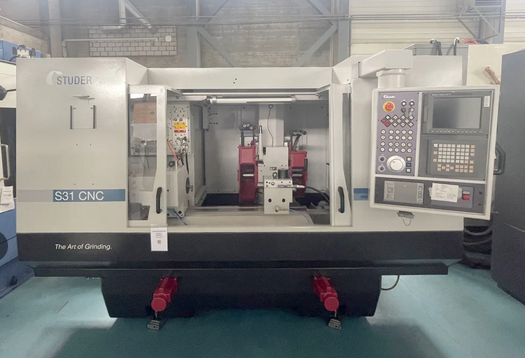

Studer S 31 LEAN CNC

CENTRE HEIGHT 175 mm
DISTANCE BETWEEN CENTRES 650 mm
MAX WORKPIECE WEIGHT 80 kg

LONGITUDINAL TRAVEL 800 mm
TRANSVERSAL TRAVEL 254 mm

WORK SPINDLE SPEED 1–1000 rpm
WORK SPINDLE ROTATION -15° to +195°
WORK SPINDLE TAPER MT4
WORK SPINDLE POWER 3 kW

GRINDING WHEEL DIAMETER 500 mm
GRINDING WHEEL WIDTH 63 mm
GRINDING WHEEL BORE 203 mm
GRINDING WHEEL SPEED 1400–3200 rpm
GRINDING PERIPHERAL SPEED 50 m/s

TURRET 2+1 POSITIONS

GRINDING SPINDLE MOTOR 7.5 kW
TOTAL POWER 32 kVA

AIR SUPPLY 5–7 bar
ELECTRICS 380 V 3 PHASE

TAILSTOCK SPINDLE STROKE 35 mm
TAILSTOCK SPINDLE DIAMETER 50 mm
TAILSTOCK TAPER MT3

MACHINE WEIGHT 5200 kg

OVERALL DIMENSIONS 3000 × 2200 × 2100 mm

MARPOSS TOUCH PROBE INCLUDED
INTERNAL GRINDING ATTACHMENT INCLUDED
RS-232 INTERFACE INCLUDED
REFURBISHED 2025
