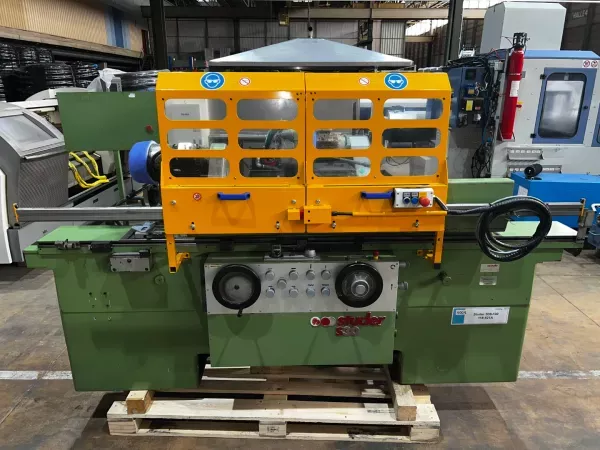

Studer S30-12

Peak height 125 mm
Tip width 400 / 700 / 1025 mm
Largest longitudinal slide path 400 / 700 / 1000 mm
Table speed 50–5000 mm/min
Reversal delay 0–6 seconds
Smallest automatic path 1.5 mm
Max distance 400 / 700 / 1020 mm
Max inclination of the table 12 / 30 / 78°
Swivel range ±45°
Quick adjustment 40 mm
Feed path with handwheel 20 mm
Maximum penetration depth 1.7 mm
Grinding wheel diameter x width x bore 450 x 80 x 203 mm
Grinding wheel speed 1340 / 1500 / 1625 / 1800 / 2000 / 2200 rpm
Coarse adjustment 210 mm
Workhead swivel range 0–90°
Workhead speed range 30–675 rpm
Workhead mounting cone Morse 5
Collets W25
Tailstock mounting cone Morse 3
Tailstock tip adjustment range 30 mm
Total power requirement 5 / 8.25 kW
