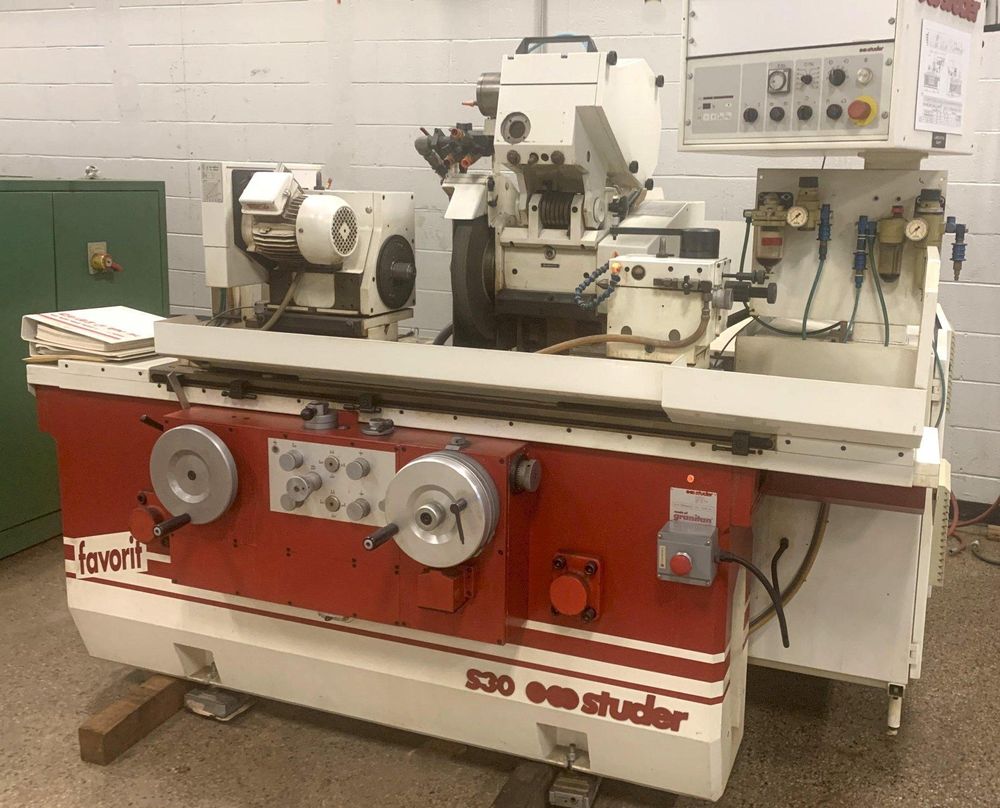

Studer S30 Favorit

Center height - 6.9"
Center distance - 25.4"
Max longitudinal table travel - 27.6"
Minimum automatic longitudinal travel - 0.06"
Table speeds - 2 to 216 ipm
Reversal dwell - 0-6 s
Maximum swivel of table - 10 deg
Wheelhead slide travel - 11.8"
Rapid approach - 2.4"
Plunge depth in diameter - 0.13"
Infeed 1 - 0.0005 to 0.236 ipr
Infeed 2 - 0.0005 to 0.047 ipr
Incremental infeed - 0.0004" to 0.002"
Grinding wheel size (D x W x B) - 16" x 3.15" x 5"
Wheelhead motor - 7.5 HP
Wheelhead speeds - 1670/2110 rpm
Workhead swivel range - 0 to 90 deg
Workhead speeds, stepless - 30 to 1000 rpm
Workhead fitting taper - Morse 5
Workhead collets - W-25
Workhead motor - 0.75 HP
Max workpiece weight between centers - 290 lbs
Live grinding load - 74 ft lbs
Tailstock fitting taper - Morse 3
Tailstock travel of barrel - 1.37"
Tailstock fine adjustment - +/- 0.0016
Machine dimensions - 88.8" L-R x 78.5" F-B x 71.6" H
Machine weight - 6160 lbs
Granitan vibration dampening base
Swing down internal grinding attachment
Hydraulic tailstock with fine adjustment
Coolant filtration system with paper media filtration
Manual collet drawbar in workhead
Users manual / schematics
Work light
Leveling pads
Transformer
1575 hours
