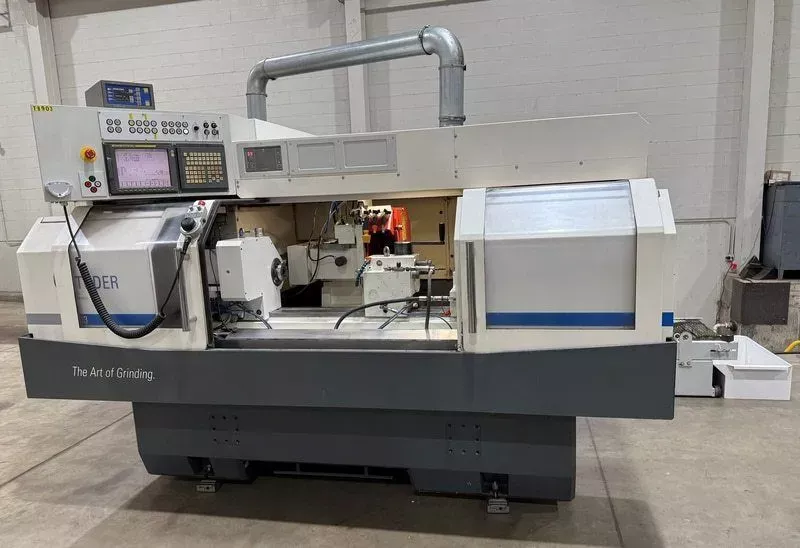

Studer S33

X-axis travel: 11.2"
X-axis infeed speed: 0.00004–197 IPM
Z-axis travel: 31.5"
Z-axis infeed speed: 0.00004–193 IPM

Measuring system resolution (X/Z): 0.000004"
Table swivel range: +8.5°
Regular C-axis for cylindrical grinding
Fanuc 21i-TB control
Studer operating system release D
Sensitron 6 acoustic monitoring system
Movomatic ES124 measuring system
Muramatic C25 touch probe
Diuttel wheel balancing system

12,000 RPM rotary dresser with frequency converter
Programmable rotary dresser speed and direction
Table swivel fine adjustment
Pneumatic table lift
Manual swivel wheelhead with air cushion lift-off
Air-cooled spindle drive motor
Workhead pneumatic lift
Double foot pedal for clamping
Manual tailstock with fine adjustment
Hydraulic-controlled barrel retraction
Electrical loader interface
Automated dual-palm door actuation
Grinding wheel changing unit
Full enclosure
Coolant filtration system
Coolant distribution interface
Absolent ODF 1000 mist collector

Transformer
Swing over bed: 13.8"
Distance between centers: 25.6"
Center height: 6.9"

Max workpiece weight: 176 lbs
Workhead taper: Morse 5
Workhead speed: 1–1,500 RPM
Workhead inching speed: 1–50 RPM
Workhead drive power: 4 HP
Live grinding torque: 53 ft-lbs
Live grinding roundness accuracy: 0.000016"

Tailstock taper: Morse 4
Tailstock stroke: 2.36"
Tailstock barrel diameter: 1.97"
Tailstock fine taper adjustment: ±0.0016"
Surface line straightness: 0.00010"

Wheelhead stop positions: 0° / 30° with air cushion lift
Wheelhead drive power: 10 HP
Grinding wheel diameter: 20"
Grinding wheel width: 2.5"
Grinding wheel bore: 8"

20" wheel surface speed: 8,661 SFPM
16" wheel surface speed: 6,890 SFPM
12" wheel surface speed: 5,118 SFPM
Rotary dresser wheel size: 4"
Rotary dresser speed: 14,100 RPM
Rotary dresser drive power: 0.46 HP
Machine dimensions: 112" L x 82" W x 75" H
Coolant system dimensions: 95" L x 38" W x 28" H
Mist collector dimensions: 35" L x 26" W x 74" H
Machine weight: 11,000 lbs
