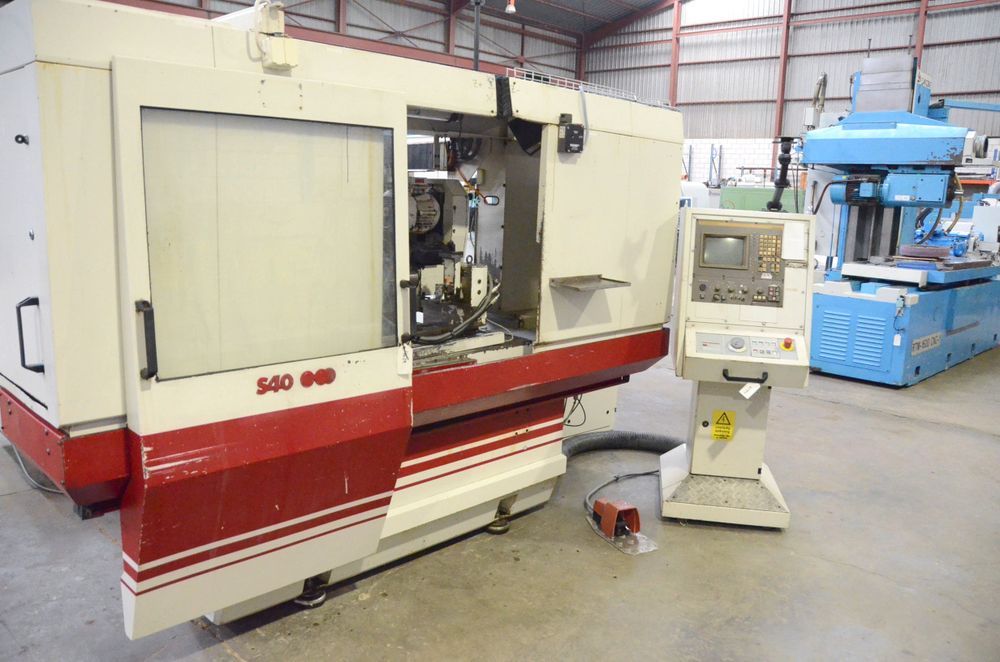

Studer S40-4

X Axis Travel 275 mm
Z Axis Travel 700 mm
Max Rotation of Workpiece Table 8.5º
Control Siemens SINUMERIC 3G7 CNC
Distance Between Points 650 mm
Max External Diameter to be Ground 320 mm
Max Internal Diameter to be Ground 140 mm
Height of Centers 175 mm
Main Engine Power 5.5 kW
Total Power 22 KVA
Max Revolutions of Workhead 30 - 750 rpm
X-Axis Feed 0.01 – 5,000 mm/min
Z-Axis Feed 0.06 – 10,000 mm/min
Air Pressure 5 bar
Inner Cone of Workpiece Head M5
Tailstock Cone M3
Counterpoint Reed Route 35 mm
Working Wheel Dimensions Ø400 x Ø127 x 80 mm
Max Workpiece Length 650 mm
Max Workpiece Weight 130 kg
Machine Dimensions 2,815 mm x 1,875 mm x 2,090 mm
Weight 3,600 kg
