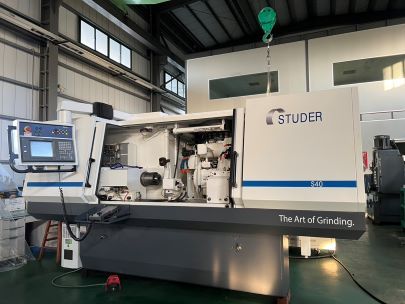

Studer S40 CNC

Centre height: 175 mm
Centre distance: 1000 mm
Table max travel: 1050 mm
Max swivel of table: 8.5°
Wheel head slide max travel: 275 mm
Grinding wheel left dia×width×bore: 400×80×127 mm
Grinding wheel right dia×width×bore: 400×40×127 mm
Wheel spindle main motor: 7.5 kW
Wheel spindle speed range: 1670–2110 rpm
Workhead speed range: 30–750 rpm
Taper: MT5
Universal work head swing range: 0–90°
Spindle power requirement: 3 kW
Tailstock taper: MT3
Tailstock travel: 35 mm
Control: FANUC 16GC
Total power requirement: 30 kW
Machine weight: 5.1 t
