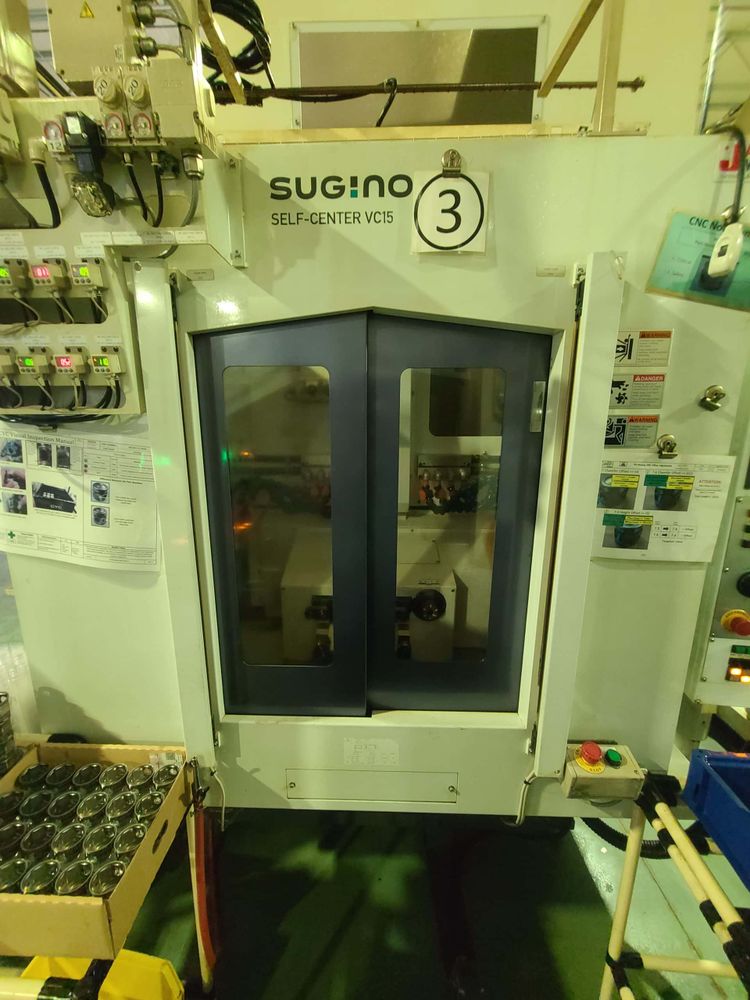

Sugino SELF CENTER VC15 3 Axis

X Axis Travel: 15.7"
Y Axis Travel: 12.6"
Z Axis Travel: 12.4"
Table Size: 27.6" × 15.7"
Spindle Motor Power: 2.9 HP Continuous, 5 HP 15-Minute
Maximum Spindle Speed: 12,000 RPM
Tool Capacity: 15
Max Tool Size: 2.36" × 7.87"
Max Tool Weight: 4.4 Lbs (7.7 Lbs With Low Speed ATC)
Tool Change Time: 1.0 Second
Rapid Feed X and Y: 945 IPM
Rapid Feed Z: 1,575 IPM
Cutting Feed Rate: 394 IPM
Positioning Accuracy: 0.00016"
Repeatability: ±0.00004"
Machine Width: 68.7"
Machine Length: 118.1"
Machine Height: 113.4"
Machine Weight: 9,920 Lbs
Power Capacity: 18 kVA
Air Pressure: 58–87 PSI
Air Consumption: 3.5 CFM
Noise Level: 75 dB(A) or Less

Features/Equipment:
English Operation Panel
Full Size Splash Guard With Auto Door, Ceiling, Slide Door Right To Left, Mist Collector, Light Curtain SF4BH48V2
52.8 Gallon Coolant Tank With Two 1 HP Pumps, Base Cleaning Piping, Splash Gun, Chip Tray
Additional Chip Tray With 0.5 HP Pump And Cleaning Piping
Chip Conveyor Installed Inside Right Splash Guard
Auto Lubrication For Ball Screw And Linear Guides
DUL Electrical Standard (Breaker, Wire, Electromagnetic Switch, Circuit Protectors)
Toyooki TP40NA-C3-D Hydraulic Unit
Fanuc 0i-MD CNC Control
