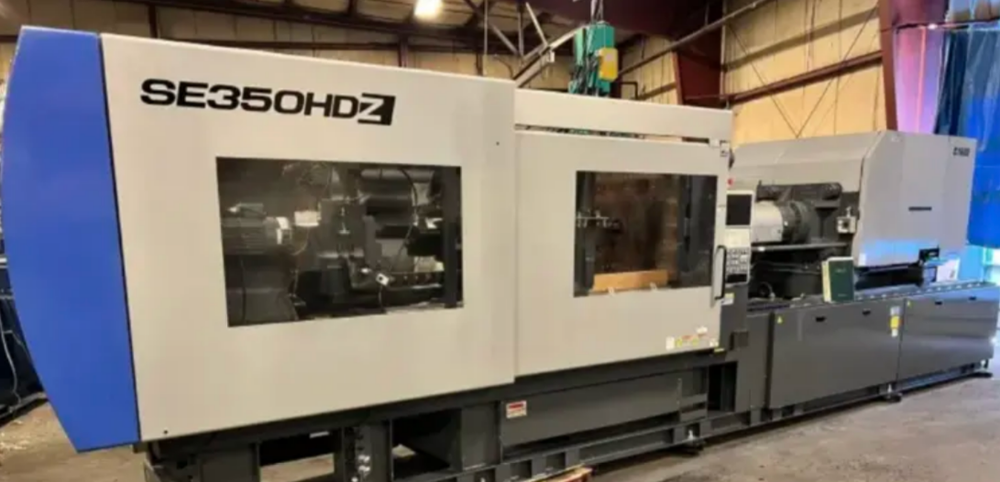

Sumitomo SE350HDZ-C1600 385 T

Type All Electric
Clamping Force Tonnage 385 T
Shot Volume (PS) 30.2 oz
Screw Diameter 2.48"
Maximum Injection Pressure 25235 psi
Maximum Holding Pressure 25235 psi
Screw Speed STD 250 rpm
Screw Speed High Torque 250 rpm
Tie Bar Distance H 29.9"
Tie Bar Distance V 27.9"
Platen Dimension H 42.13"
Platen Dimension V 40.16"
Maximum Daylight 53.94"
Mold Height Min 15.75"
Mold Height Max 26.38"
Ejector Force 6 T
Ejector Stroke 5.91"
Power supply Volts 230
Injection Orientation Horz

Equipped With
Robot Interface
Wired for core pull
Air Blow
