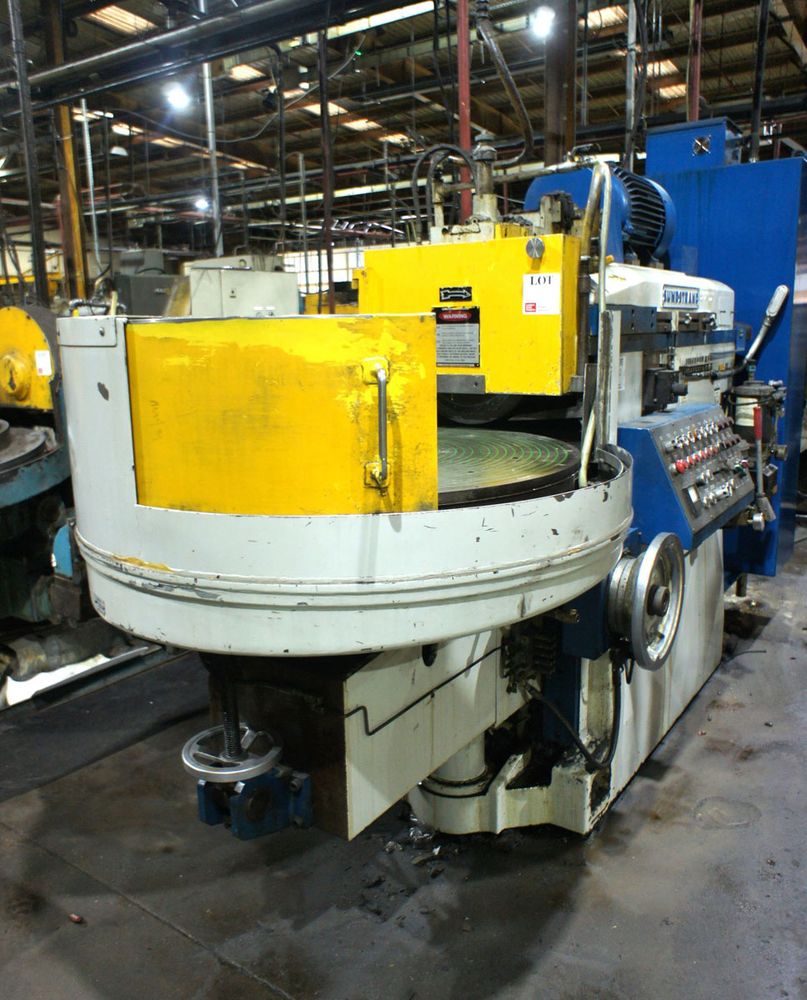

Sundstrand ARTER H-40 ROTARY SURFACE GRINDING MACHINE

Diameter of magnetic chuck: 40"
Maximum swing inside chuck guard: 44"
Standard wheel size: 16" x 2" x 8" hole
Maximum height to center of wheel: 17.5"
Knee maximum vertical travel: 12"
Maximum angle convex: 10°
Maximum angle concave: 10°
Table speeds: 37 - 130 RPM
Table travel maximum: 20"
Table traverse rate: 0 - 15 FPM
Neutrofier variable magnetic chuck control
20 HP spindle drive motor with variable speed control
10 HP hydraulic system motor
Servo motors for all axes
Wheel adapter
New lubrication system
External coolant tank with 1/4 HP pump
Table trip dogs
Misc. splash guarding
Machine weight: approx. 13,000 lbs.
Machine dimensions: 120" x 65" x 105" high
