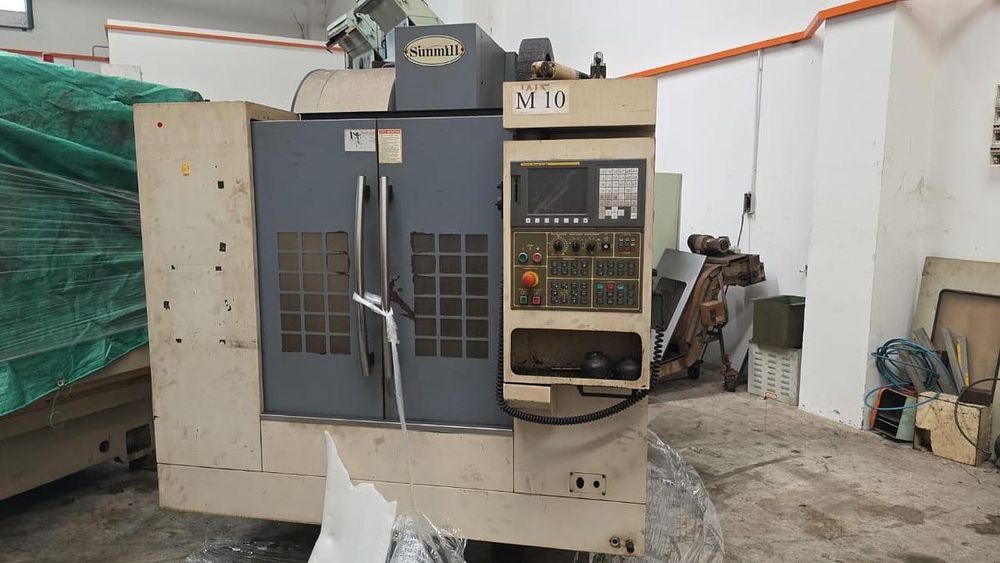

SUNMILL JHV-550 3 Axis

X-axis travel: 550 mm
Y-axis travel: 400 mm
Z-axis travel: 460 mm
Rapid traverse: 1 – 15000 mm/min

CNC Control: Fanuc 0i-MD
ATC capacity: 24 tools
Spindle taper: BT40
Spindle speed: 10000 RPM
Cutting feed rate: 1 – 15000 mm/min

Distance spindle nose to table: 120 – 580 mm
Table size: 650 × 410 mm
Maximum table load: 250 kg
Maximum tool length: 200 mm
Maximum tool weight: 7 kg
Power consumption: 20 kVA
Machine dimensions: 2400 × 2450 × 2650 mm
Machine weight: 3400 kg
