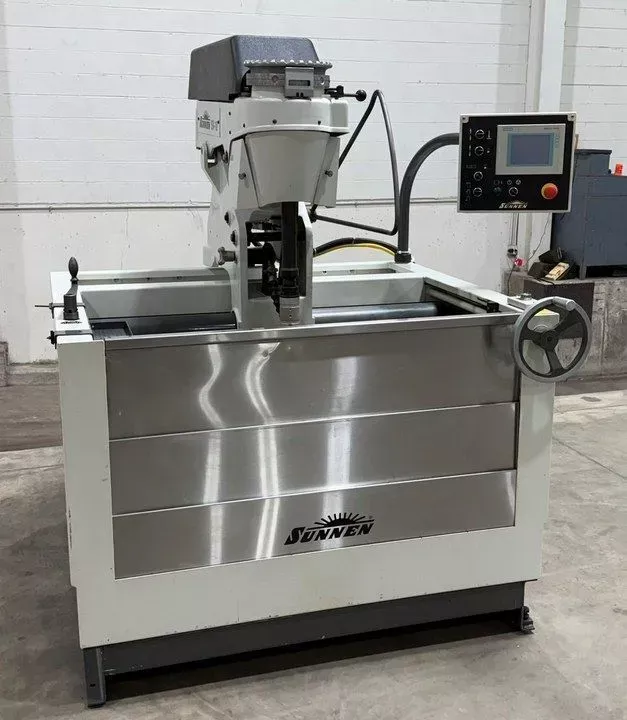

Sunnen SV-10

9″ Stroke
Bore Diameter 3/4″ – 8″
Workpiece Weight Capacity 1,496 Lbs.
Workpiece Size 46″L x 22″W x 26.5″H
Spindle Speed 90 – 350 RPM
Spindle Motor 3 HP
Stroker Speed 40 – 80 SPM
Stroker Length Up To 9″
Stroker Motor 1 HP
Carriage Travel 35″ L-R
Honing Fluid Capacity 55 Gals.
Honing Fluid Delivery 10 GPM @ 25 PSI
Electrics 220/230V, 50/60 Hz, 3 Phase, 24 FLA
Machine Weight 1,900 Lbs.
Machine Dimensions 90″(L-R) x 73″(F-B) x 87″(H)
Siemens Simatic TOUCH PLC Control
Full Bore Profile Display
Programmable Auto Dwell
Built-in Calculator for Crosshatch, Stroke, and Spindle Speed
Multi-position Rollover Fixture
Mechanical Power Stroking
Stroke Adjustment and Positioning
Built-in Coolant Filtration System
Settling Tank
2 Filter Cartridges
Partial Enclosure
