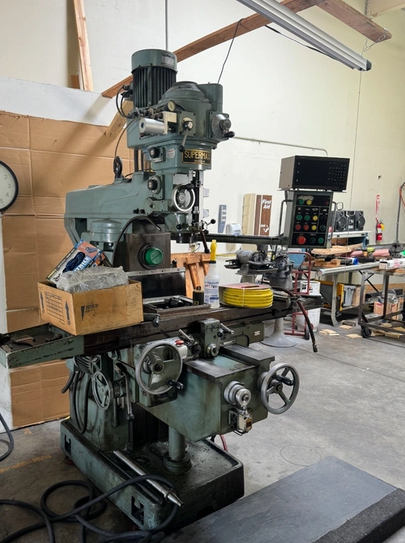

Supermax, YCI YCM-2GS Vertical 1300 RPM

Table Working Size 51.2" X 11"
Table Travel Longitudinal 39.4"
Table Travel Cross 14.2"
Table Travel Vertical 17.7"
Longitudinal & Cross Feed Range 1/2 To 23-3/4 IPM
Vertical Feed Range 31-1/2 IPM
Rapid Traverse Longitudinal & Cross 118 IPM
Horizontal Spindle Taper #40
Horizontal Spindle Speeds 9
Horizontal Spindle Speed Range 85 To 1300 RPM
Horizontal Spindle Motor 5 HP
Vertical Spindle Motor 5 HP
Vertical Spindle Speed Range 75 To 4,220 RPM
Vertical Spindle Nose Taper #40
Quill Feeds .0015, .005, .003 IPR
Quill Travel 5-1/2"
Swiveling Angle of Head 90 Degrees
Electrics 220 / 440 / 3 / 60
Machine Weight 5,720 LBS
Dimensions 74" X 62" X 94"
Variable Speed
Digital Read Out System
Spindle and Turret Head
Horizontal Arbor Supports with Arbor
Coolant System
One Shot Lubrication
Bijur #UBA2 Spray Mist Coolant Unit
