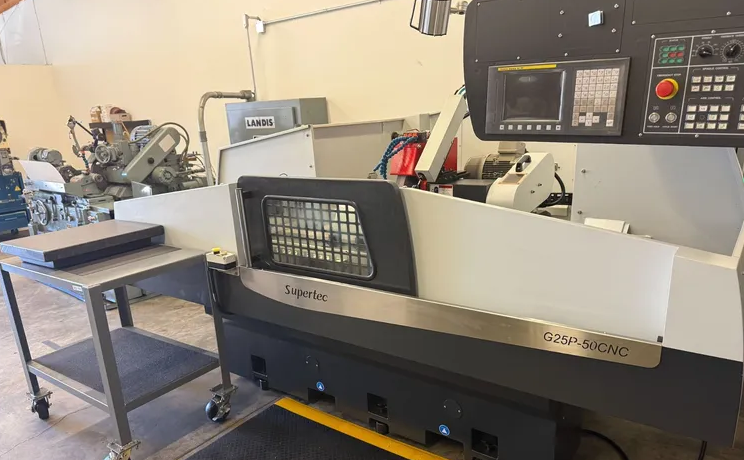

Supertec FANUC OI-TC CNC 500 RPM G25P-50CNC 2 Axis

X Axis Motor (Wheelhead): 0.8 HP
Z Axis Motor (Table): 0.8 HP
Automatic Rapid Traverse: 236 in/min
Infeed Travel: 6"
Minimum Increment Infeed: 0.000010"
Quill Travel: 1"
Table Swiveling Angle: 7° (CCW)
Rapid Feedrate: 0–315 in/min
Minimum Increment Feed: 0.0001"
Control: FANUC OI-TC CNC
Swing Over Table: 10"
Distance Between Centers: 20"
Max Grinding Diameter: 10"
Max Load Between Centers: 176 lbs
Wheel Diameter x Width x Bore: 16" x 1.5" x 5"
Wheel Speed: 1940 RPM
Max Peripheral Speed: 118 ft/sec
Sliding Angle (Wheelhead): 90°
Spindle Speed (Workhead): 50–500 RPM
Workhead Center Taper: MT3
Workhead Spindle Type: Fixed & Rotary
Workhead Bore Diameter: 0.79"
Internal Grinding Spindle Speed: 14000 RPM (standard)
Internal Grinding Spindle Speed (Optional): 25000 RPM
Max Internal Grinding Bore: 0.9375"–2.75"
Max Internal Grinding Length: 2.75"
Max Chucking Length: 10.75"
Max Chucking Diameter: 4.33"
Wheel Spindle Motor: 5 HP
Workhead Motor: 0.25 HP
Hydraulic Pump Motor: 1 HP
Lubrication Pump Motor: 0.25 HP
Coolant Pump Motor: 0.125 HP
Net Weight (Semi-Enclosed): 4400 lbs
Gross Weight Including Packing: 5500 lbs
Packing Dimensions (L x W x H): 110" x 69" x 81"

FANUC OI-TC CNC Controller
Diamond Dresser
Table Dial Gauge
Wheel Extractor
Halogen Lamp
Balancing Stand with Arbor
Infinite Variable Workhead
Grinding Wheel with Flange
Semi-Enclosed Splash Guard
Leveling Screws with Blocks
Operation Manual with Parts List
Tool Box with Adjusting Tools
Coolant System with Magnetic Separator
Carbide Tip Centers
Lube Oil Temperature Regulator (G32A/G38A)
