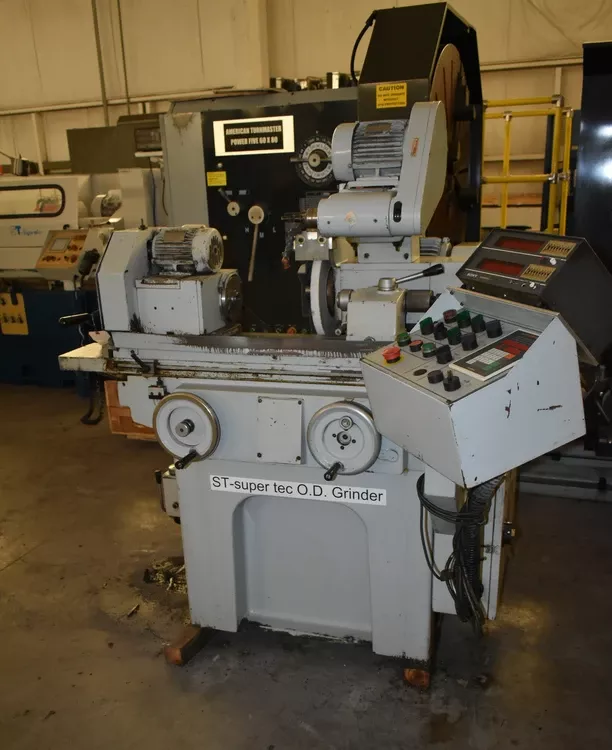

Supertec G10P-40C

Swing Over Table: 8 in
Maximum Grinding Diameter: 8 in
Distance Between Centers: 16 in
Weight Capacity Between Centers: 110 lb
Grinding Wheel Diameter: 12 in
Grinding Wheel Width: 1–2 in
Grinding Wheel Bore: 3 in
Grinding Wheel Speed: 1,960 RPM
Wheel Motor Power: 2 hp
Workhead Spindle Speeds: 150–480 RPM
Workhead Motor Power: 0.25 hp
Table Traverse Motor Power: 0.25 hp
Internal Grinding Spindle Speed: 14,000 RPM
Internal Grinding Bore Capacity: 0.6–2.75 in
Internal Grinding Length: 2.75 in
Internal Spindle Chucking Length: 10.75 in
Internal Grinding Motor Power: 0.5 hp
Table Swivel Angle: ±8°
Workhead Swivel Angle: ±45°
Workhead and Tailstock Taper: MT3
Mitsubishi PLC Control
Sony Magnescale LF200 Digital Readout
Universal Cylindrical Grinder
Plain Head Configuration
Internal Grinding Spindle Attachment
Automatic Table Traverse
Automatic Incremental Wheelhead Infeed
Coolant System with Tank and Pump
Machine Length: 58 in
Machine Width: 41 in
Machine Height: 52 in
Machine Weight: approx. 2,200 lb
