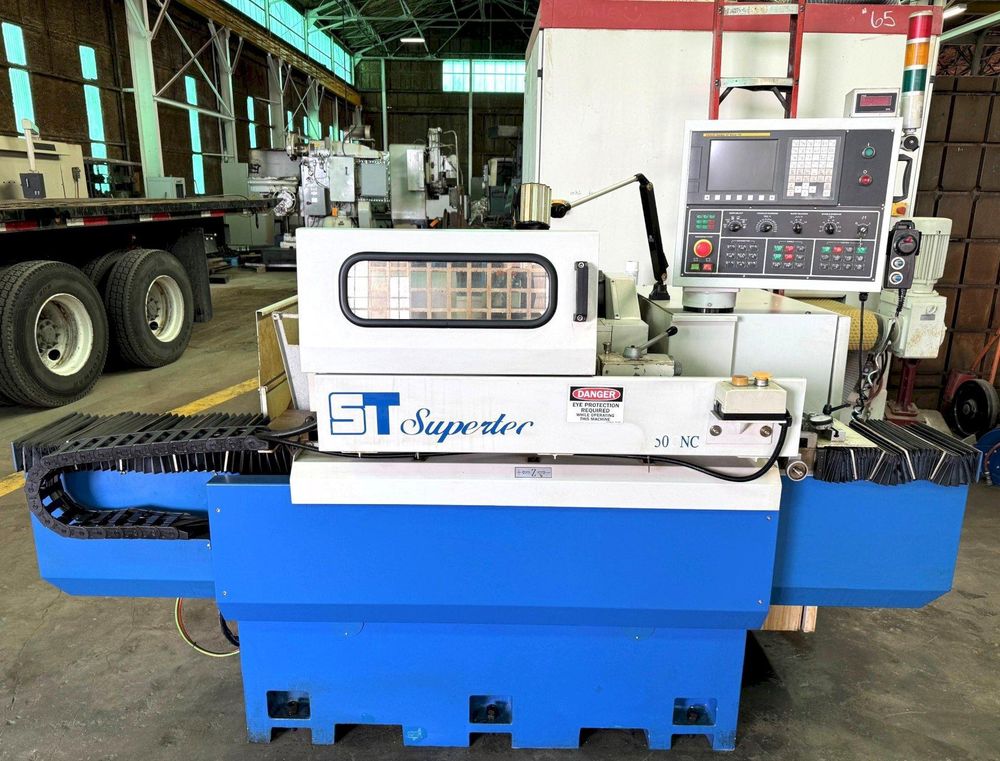

Supertec G20P-50CNC

Z-axis travel: 18"
X-axis travel: 6"

Control: FANUC Series Oi Mate-TD
Coolant system
Work light

Maximum grinding diameter: 8"
Maximum grinding length: 18"
Swing over table: 8"
Maximum load capacity: 176 lbs

Wheel speed: 1940 rpm
Wheel size: 16" x 2" x 5"
Wheelhead motor power: 5 HP

Workhead speed: 50–500 rpm
Workhead motor power: 0.5 HP
Spindle bore: 0.79"
Center taper: 3 MT

Rapid feed rate Z axis: 315 ipm
Rapid feed rate X axis: 236 ipm

Tailstock quill stroke: 1"
Tailstock taper: 3 MT

Machine weight: 5500 lbs
