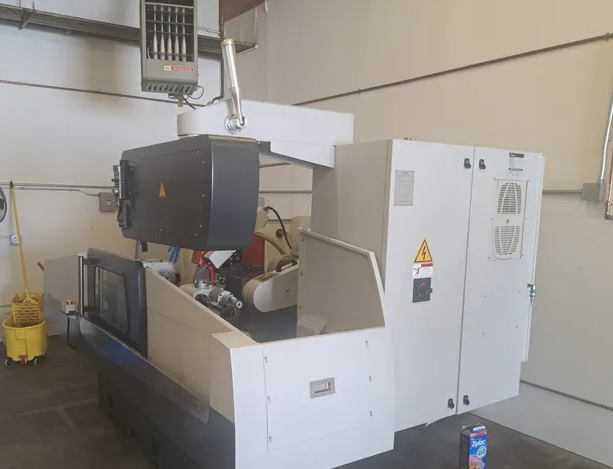

Supertec G25P-50CNC

Rapid traverse: 236 in/min
Infeed travel: 6"
Min. infeed increment: 0.000010"
Table swiveling angle: 7°
Rapid feedrate: 0–315 in/min
Min. table feed increment: 0.0001"
Control: FANUC OI-TC CNC
Swing over table: 10"
Distance between centers: 20"
Max. grinding diameter: 10"
Max. load between centers: 176 lbs
Grinding wheel diameter × width × bore: 16" × 1.5" × 5"
Wheel speed: 1940 RPM
Max. peripheral speed: 118 ft/sec
Wheelhead sliding angle: 90°
Tailstock quill travel: 1"
Tailstock center taper: MT3
Workhead spindle speed: 50–500 RPM
Workhead center taper: MT3
Workhead spindle type: Fixed & rotary
Workhead bore diameter: 0.79"
Internal spindle speed (standard): 14000 RPM
Internal spindle speed (optional): 25000 RPM
Max. grinding bore: 0.9375"–2.75"
Max. internal grinding length: 2.75"
Max. chucking length: 10.75"
Max. chucking diameter: 4.33"
Wheel spindle motor: 5 HP
Workhead motor: 0.25 HP
Hydraulic pump motor: 1 HP
Lubrication pump motor: 0.25 HP
Coolant pump motor: 0.125 HP
Wheelhead (X axis) motor: 0.8 HP
Table (Z axis) motor: 0.8 HP
Net weight: 4400 lbs
Gross weight: 5500 lbs
Packing dimensions (L × W × H): 110" × 69" × 81"
Diamond dresser
Table dial gauge
Wheel extractor
Halogen lamp
Balancing stand with arbor
Infinite variable workhead
Grinding wheel with flange
Semi-enclosed splash guard
Leveling screws with blocks
Operation manual with parts list
Toolbox with adjusting tools
Coolant system with magnetic separator
Carbide tip centers
Lube oil temperature regulator (G32A/G38A)
