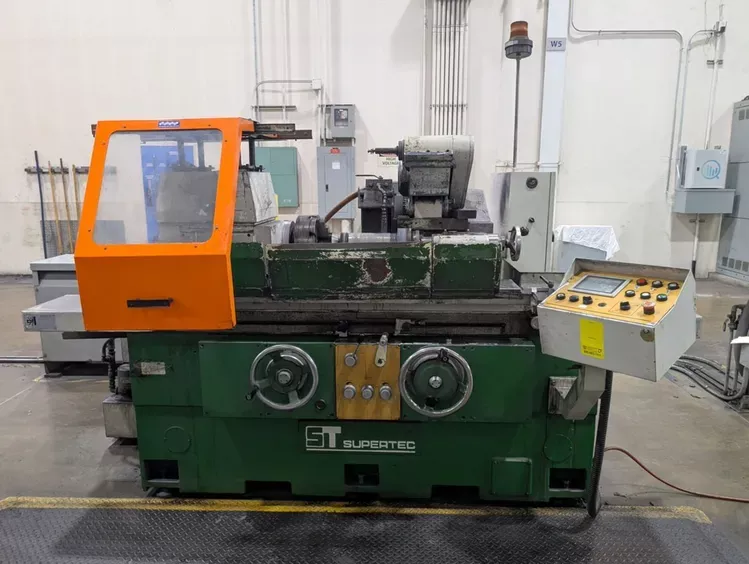

Supertec G32P-60CII

Swing 12.6"
Distance Between Centers 24"
Power 7.5 HP
Grinding Wheel Diameter 16"
Wheelhead Infeed Travel 9.6"
Wheelhead Top-Slide Travel 7"
Grinding Wheel Width 2"
Grinding Wheel Hole Diameter 5"
Grinding Wheel Speeds 1650 RPM
Workhead Spindle Speeds 30–350 RPM
Longitudinal Table Feeds, Infinite 1.2–275 IPM
Wheelhead Incremental Feed Range 0.0001–0.0999"
Wheelhead Swivel Angle Range ±30°
Table Swivel Angle Range ±9°
Workhead Swivel Angle Range 90°
Wheelhead Motor 7.5 HP
Workhead Motor 2 HP
Electrical System 230/3/60
Overall Height 79"
Weight Approximately 8,560 Lbs
Equipped with Programmable Automatic Infeed Capabilities
Swing-Down Internal Grinding Spindle
Automatic Incremental Wheelhead Infeed
Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Cast Base
Automatic Lubrication System
Coolant Filtration System (Tank & Pump)
10" 4-Jaw Chuck
