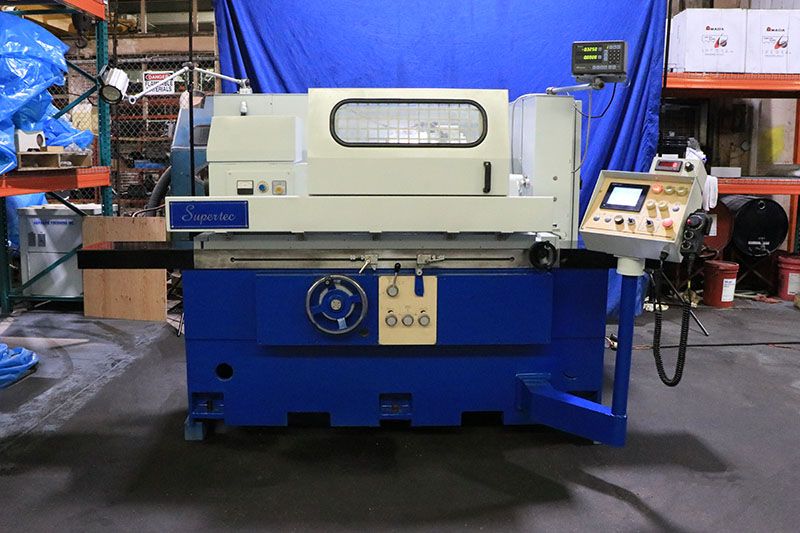

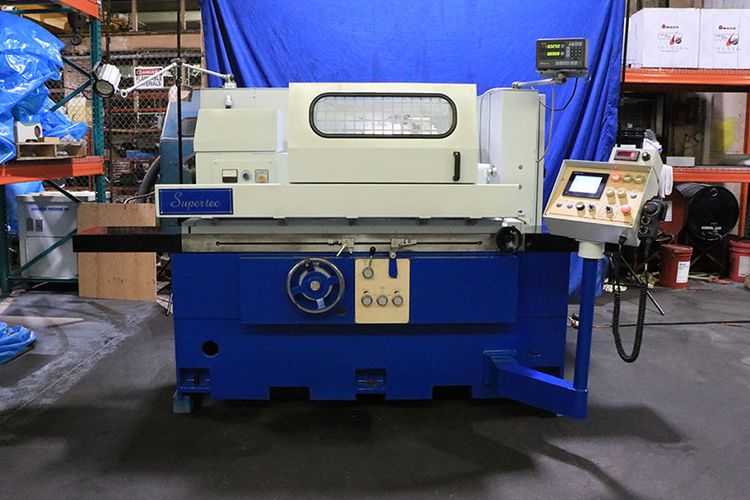

Supertec G38P-60NC

Distance between centers: 24"
Swing over table: 15"
Max grinding diameter: 14"
Max load held between centers: 330 lbs
Wheelhead hand feed travel: 7.8"
Wheelhead auto incremental infeed (NC): 0.0001" ~ 0.0999"
Wheelhead handwheel per division: 0.0002"
Wheelhead handwheel per revolution: 0.08"
Wheelhead infeed travel: 9.6"
Wheelhead top slide sliding travel: 7"
Wheelhead swiveling angle (R&L): 30°
Wheelhead automatic rapid travel: 1.75"
Grinding wheel diameter x width x bore: 16" x 2" x 5"
Grinding wheel speed: 1650 rpm
Table swiveling angle (R&L): 7°
Table traverse speed (infinitely variable): 1.2" ~ 275"/min
Table handwheel per revolution: 0.39"
Workhead swiveling angle (R&L): 90°
Workhead center taper: MT4 (option MT5, 5C)
Workhead spindle speed (infinitely variable): 30 ~ 350 rpm
Tailstock center taper: MT4 (option MT5)
Tailstock quill travel: 1"
Internal grinding spindle speed: 12000/18000 rpm or 25000 rpm
Max grinding bore (internal spindle): 4.33" or 2.17"
Max chucking length (internal spindle): 8" ~ 12.4"
Max chucking diameter (internal spindle): 6"
Wheel spindle motor power: 7.5 HP (upgradeable to 10 HP)
Workhead motor power: 2 HP
Hydraulic pump motor power: 2 HP
Coolant pump motor power: 0.25 HP
Internal grinding motor power: 2 HP
Net machine weight: 10340 lbs
Gross machine weight: 11220 lbs
Packing dimensions (L x W x H): 119" x 90" x 79"
