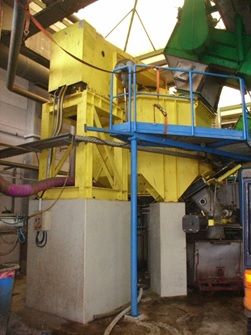

Suspensor for Biogas plants 12m3/ 3100 mm dia.
EUROPE (Western and Northern)
Producer: Lohse
Description: the suspensor is a closed container for bio waste transition into a pumpable suspension under separation of contaminants.

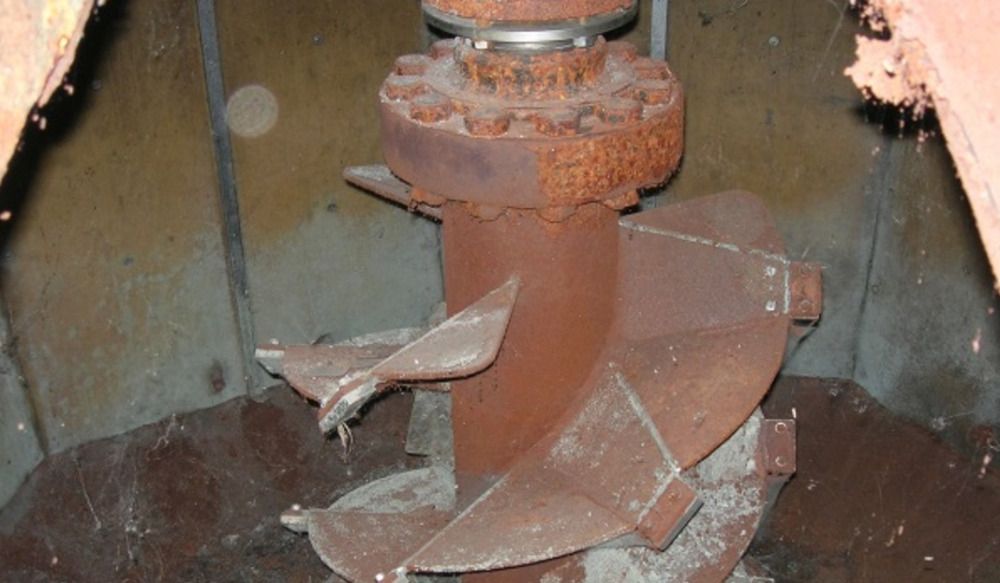

The bio waste is carried in the container under dosed water trap and is being hackled and dissolved under rotation within the container. Special devices for contaminants discharging are fitted to the container.
All waste pulper functions are run automatically.
Technical data
Dissolving container usable volume 12m³
Container diameter 3100mm
Pulper capacity 4 tons municipal bio waste/h
Sorter perforation 8x25mm
Leistung Antriebsmotor Auflösewendel 132KW
Nominal rotation speed 985 U/min
Voltage 400V/50Hz
Safety class IP54
Type V6
With forced ventilation Typ MAF 90 S6
Power transmission Wendelantrieb 8 Schmalkeilriemen; Profil SPC; LW=7100
Wendeldrehzahl with frequency converter
(on site) adjustable by 8 narrow v-belts
40-270 U/min
Heavy junk trap DN 400
Vacuum ports DN 250
