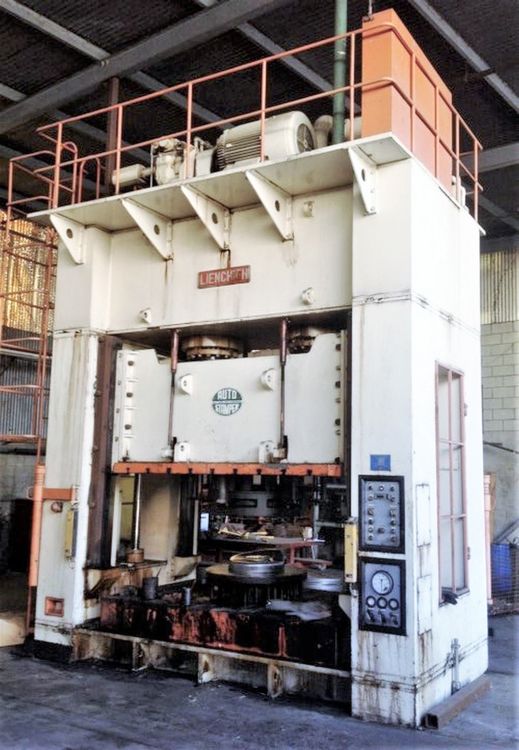

Sutherland LD-500 550 tons @ 3,228 psi

Press force 550 tons @ 3,228 psi
Max stroke 39.37" / 1000 mm
Max daylight to bed 51" / 1300 mm
Bed area 98.4" x 65" (RL x FB) / 2500 x 1650 mm
Speed 825 / 52 / 708 IPM
Ram area 98.4" x 65" (RL x FB)
Bolster size 98.4" x 65" (RL x FB) x 12" thick T-slotted
Bolster area 33" x 77"
Cylinder size 14.7638" dia. bore
Floor to bed 55"
Press controls Omron relay logic controller
Hydraulic system Mannesmann Rexroth HD-LV pump 662739 NR
Hydraulic system 1140 min N
Hydraulic system 74 kW
Electric motor 100 HP 220/440V 3 phase 60 Hz
Electric motor 236/118 amps
Overall dimensions 155" x 96" (RL x FB) x 276" high
Approx. weight 100,000 lbs
Hydraulic cushion capacity 200 tons
Hydraulic cushion stroke 11.811"
Dual cylinder hydraulic cushion in bed
Crown mounted tank
