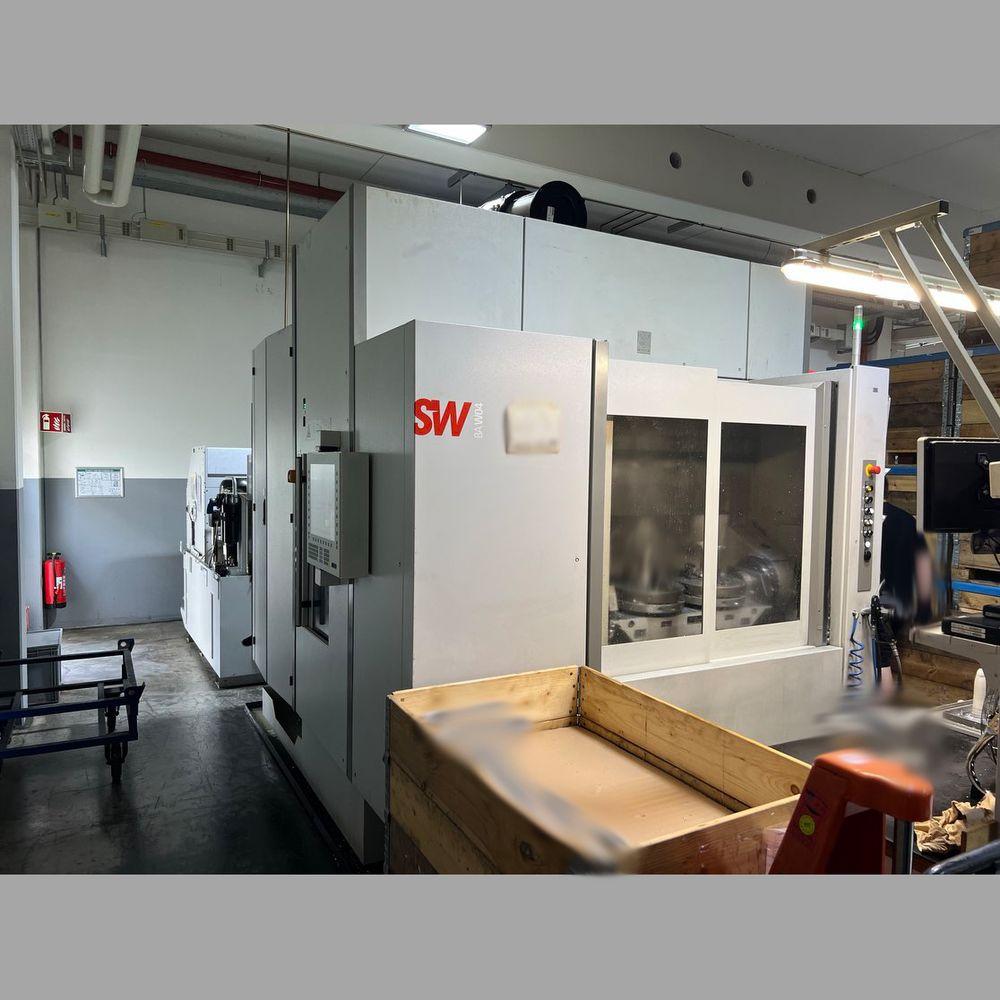

SW (Schwäbische Werkzeugmaschinen) BA W04-22 4 Axis

X Travel: 400 mm
Y Travel: 500 (775) mm
Z Travel: 425 mm
Rapid Traverse (X/Y/Z): 100/100/100 m/min
Control: Siemens 840D Solutionline
Linear Glass Scales: X/Y/Z/A(U)/C1(C2)/W1(W2)
Linear Drive
Dual Z-Axis
Tool Taper: HSK-A63
Spindle Speed: 17,500 RPM
Spindle Power: 35/26 kW
Spindle Torque: 80/60 Nm
Spindle Diameter: 80 mm
2 Horizontal Milling Spindles
Spindle Distance: 400 mm
Chain Tool Magazine: 2 × 36 Tools
Maximum Tool Diameter: 80 mm
Maximum Tool Diameter (Without Adjacent Tools): 160 mm
Maximum Tool Length: 300 mm
Maximum Workpiece Weight: 10 kg
Chip-to-Chip Time: 2.25 sec
2-Station Pallet Changer
Maximum Pallet Load: 450 kg
2 NC Swivel Units
4 NC Rotary Tables
Workpiece Swing Diameter: 550 mm
Air Supply: 6 bar
Electrical: 3 × 400 V / 50 Hz
Total Power Requirement: 133 kVA
Machine Dimensions: 3230 × 5100 × 3050 mm
Installation Dimensions: 4350 × 7000 × 3100 mm
Machine Weight: 14,500 kg

Double-Spindle 5-Axis Machining Center
Linear Drives
Air-Monitored Tool Clamping
Torque Support for Multi-Spindle Drilling Heads
2 Clamping Bridge Supports
Hydraulic Clamping
4 Additional Clamping Circuits
Air-Monitored Workpiece Clamping
IR Measuring Probe
Inductive Tool Breakage Detection
Fully Enclosed Working Area
Automatic Loading Door
Work Area Light
Scraper Chip Conveyor
Flood Coolant System
Internal Coolant Supply
Coolant Unit with Paper Band Filter
Temperature-Controlled Coolant
70 Bar High-Pressure Coolant Pump
Remote Diagnostics
Rigid Tapping
Additional Tool Management Control Panel
Warning Lamp
