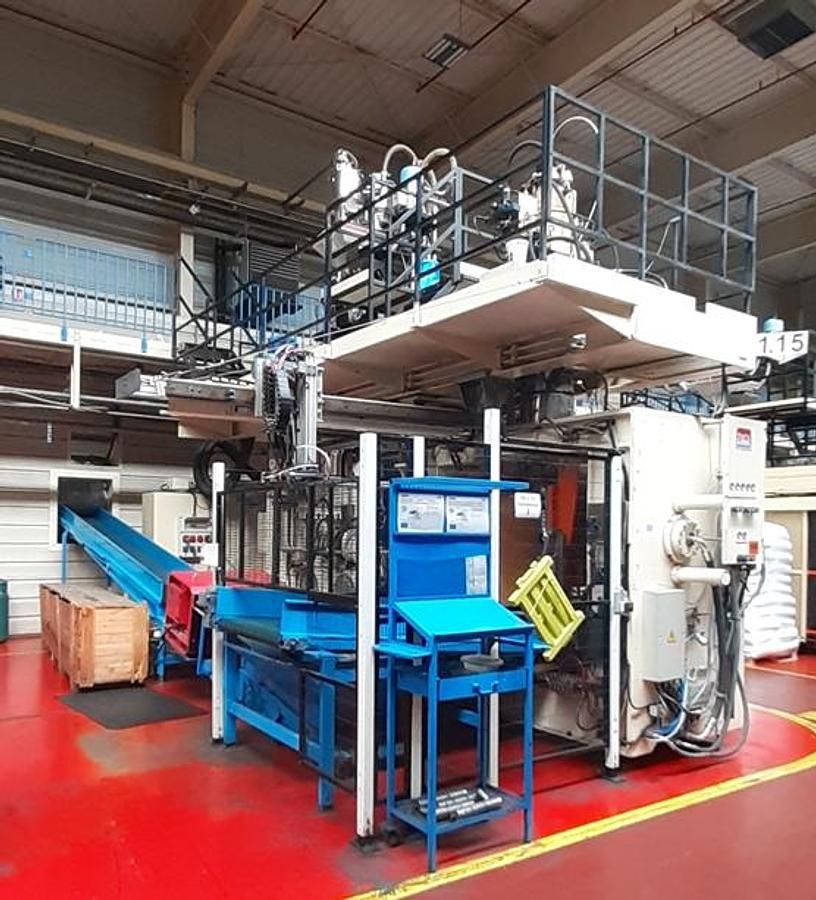

TA 500 Blowmoulding
Ref :
2792117-6-CP
Condition :
Used
Manufacturer :
-
Model :
TA 500 Blowmoulding
Year(s) :
2003
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Producer ZAGA
50 Liters
Clamping force: 60T
Platform dimensions: 700 x 800 mm
Platform opening: min. 560 mm – max. 1200 mm
Opening stroke: 550 mm - Platform vertical travel: 300 mm
Maximum mold width: 800 mm - Maximum mold height: 1000 mm
Minimum mold thickness: 670 mm
Screw diameter: 90 mm LD 24
Mixing nozzle
Extrusion capacity: 270 kg HDPE
Motor power: 97 kW - Heating zones: 4
Heating power: 27.1 kW
Storage capacity: 8 L
Maximum storage weight: 6.1 kg HDPE
Minimum die diameter: 100 mm – max. 220 mm
Number of preform control points: 100
