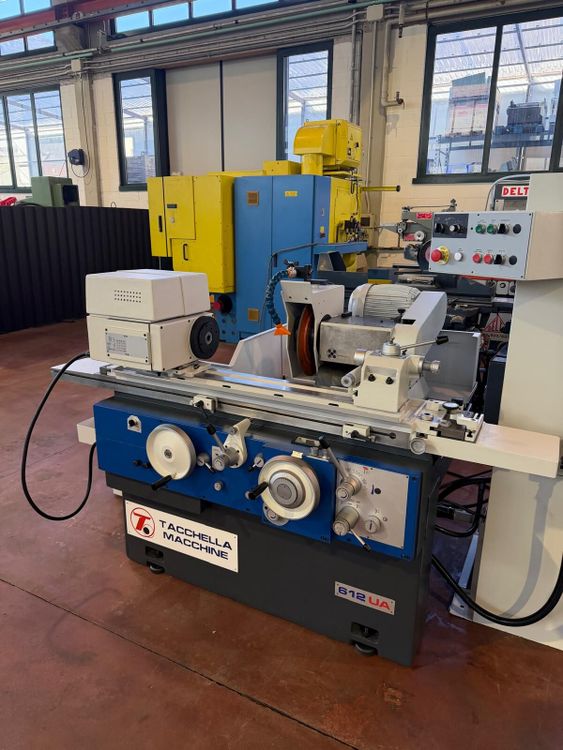

Tacchella 612UA

Center distance: 600 mm
Center height: 120 mm
Longitudinal travel (Z): 600 mm
Cross travel (X): 250 mm
Max grinding length: 600 mm
Max grinding diameter: 240 mm
Max internal diameter: 10-270 mm
Max internal depth: 440 mm
Table stroke: 4-600 mm
Table speed: 100-7000 mm/min
Max workpiece weight: 100 kg
Table tilt: 10°
External spindle power: 4 kW
External spindle speed: 1640-1900 RPM
Internal spindle power: 1.1 kW
Grinding wheel width: 70 mm
Max grinding wheel diameter: 355 mm
Grinding wheel bore: 127 mm
Workpiece head speed: 22-580 RPM
Workpiece head tilt: 90°
Workpiece head taper: MK3
Tailstock quill diameter: 20 mm
Tailstock quill stroke: 20 mm
Tailstock taper: MK3
Total power: 6.45 HP
Weight: 2400 kg
Floor space: 2660 x 1850 x 1750 mm
Paper filter coolant unit
Electrical drawings
Maintenance and operation manuals
Available in stock
