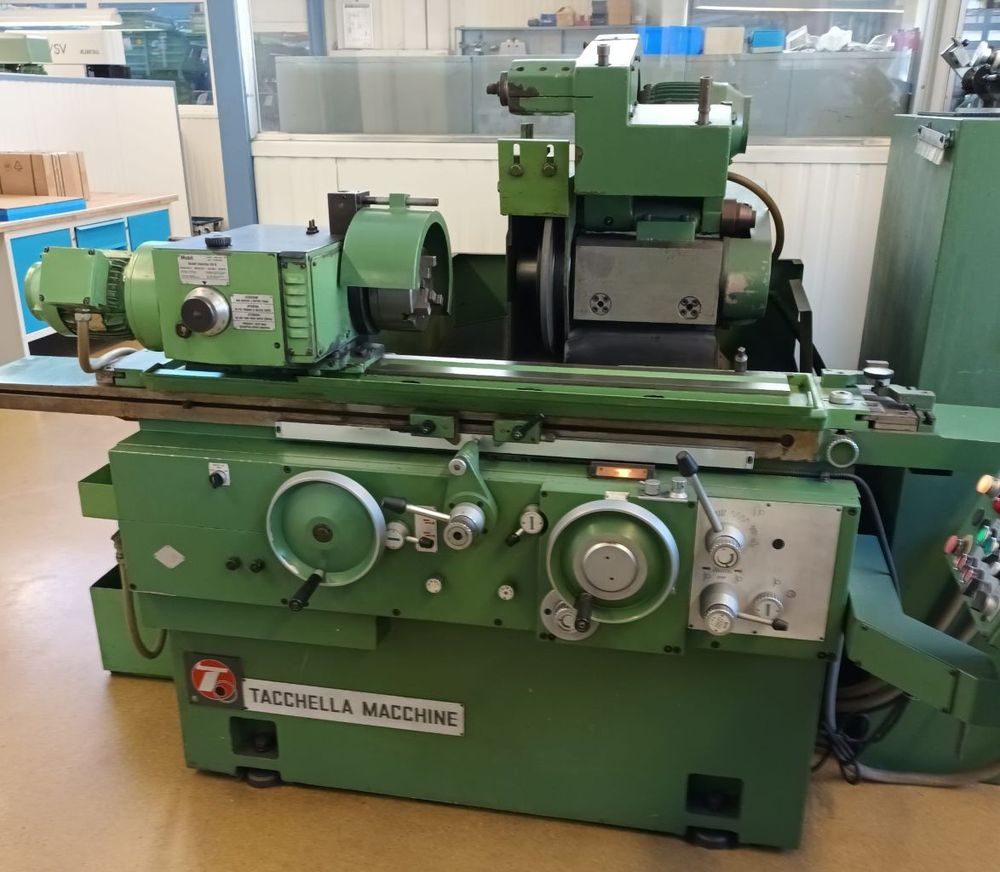

Tacchella 612UN

Centres distance 600 mm
Centres height 120 mm
Longitudinal travel Z 600 mm
Cross travel X 250 mm
Max grinding length 600 mm
Max grinding diameter 240 mm
Max internal diameter 10-270 mm
Max internal depth 440 mm
Table stroke 4-600 mm
Cross speed 100-7000 mm/min
Max workpiece weight 100 kg
Table tilt 10 °
External spindle power 4 kW
External spindle speed 1640-1900 rpm
Internal spindle power 1.1 kW
Wheel band thickness 70 mm
Max wheel diameter 355 mm
Hole diameter 127 mm
Workpiece head speed 22-580 rpm
Workpiece head tilt 90 °
Workpiece head taper MK3
Tailstock quill diameter 20 mm
Tailstock quill stroke 20 mm
Tailstock taper MK3
Total power 6.45 kW
Machine weight 2400 kg
Floor space 2660 x 1850 x 1750 mm
Filtration unit paper filter tank
Maintenance and use books
Electrical drawings
Available in stock
