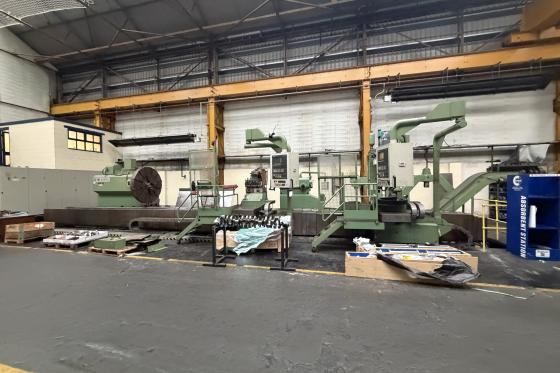

Tacchi Control SIEMENS 840C 360 rpm HD3/140L 2 Axis

Swing over bed 2000 mm
Swing over cross slide 1550 mm
Turning length between centers 8000 mm
Workpiece weight between centers up to 25000 kg
Spindle bore 150 mm
Spindle power 95 kW
Torque up to 45000 Nm
Spindle speed up to 360 rpm
Bed width 1400 mm
4 jaw chuck Ø 1500 mm
Tailstock quill diameter 260 mm
Tailstock quill stroke 200 mm
Spindle taper Metric 80
Feed rate X axis 0–6000 mm/min
Feed rate Z axis 0–6000 mm/min
C axis with 360000 positions
Milling tower 22 kW
Milling speed 1800 rpm
Milling torque 2800 Nm
X travel 900 mm
Y travel 500 mm
Rapid traverse 6000 mm/min
Steady rest hydraulic C type 500–900 mm
Steady rest fixed closed 800–1200 mm
Steady rest fixed closed 500–900 mm
Machine height approx. 3800 mm
Machine width approx. 5000 mm
Machine length approx. 16000 mm
Machine weight 80000 kg
