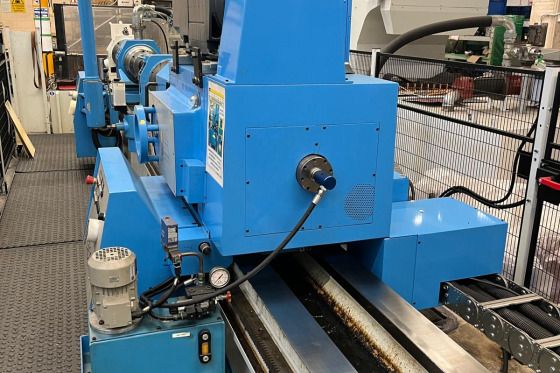

Tacchi FT 350 x 3000 1800 rpm

Control: Siemens 840D
Drilling Depth: 3000 mm
Max Drill Diameter in Steel: 200 mm
Maximum Outside Diameter: 250 mm
Swing Over Bed: 700 mm
Center Height: 350 mm
Spindle Bore: 85 mm
Spindle Speed: 1800 rpm
Spindle Power: 44 kW

Drilling Carriage Rapid Feed Rate: 6000 mm/min
Maximum Drilling Thrust: 35000 N

Feeder Carriage Rapid Movement: 5000 mm/min
Feeder Carriage Thrust: 35000 N
Hydraulic Approach Stroke: 150 mm

Skiving and Roller Burnishing Process
Two-Step Finishing Process
Skiving Knife Cutting System
Cold-Form Roller Burnishing System
Suitable for Hydraulic and Pneumatic Cylinders and Rods

ECOROLL Boring Head Diameter: 40 mm
ECOROLL Boring Head Diameter: 50 mm
ECOROLL Boring Head Diameter: 63 mm
ECOROLL Boring Head Diameter: 80 mm
ECOROLL Boring Head Diameter: 90 mm
ECOROLL Boring Head Diameter: 100 mm

Machine Length: 11500 mm
Machine Width: 4300 mm
Machine Height: 2350 mm
Machine Weight: 14450 kg
