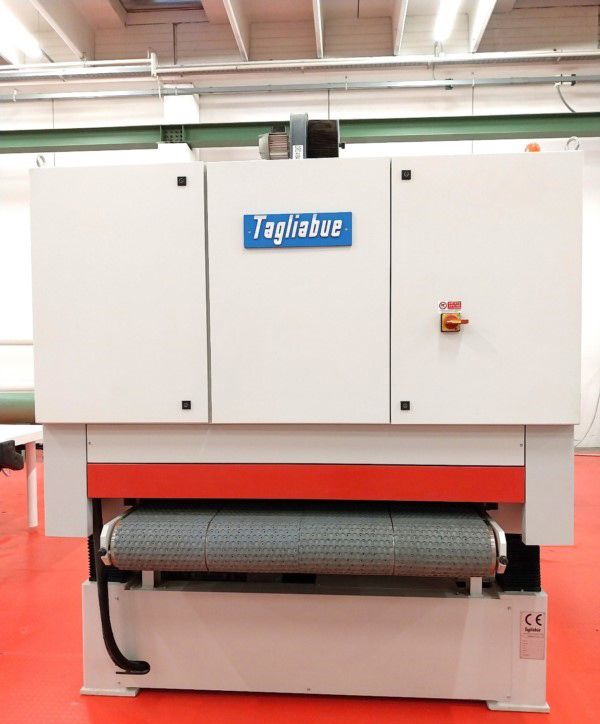

Costa Levigatrici, Tagliabue TAG 11

Automatic calibrating sanding machine with 2 belts and movable head for furniture, carpentry,
custom-made furnishings, panels, solid wood, tables, composite materials and various - CE Standard

Steel enblock
Conveyor plane provided with a thick rectified steel structure
Sanding belt motors placed inside the base
Rubber conveyor belts structured in 3 cloths and sectionated in rings for constant centering on the plane
Base with thickness sheet up to 30 mm
Movable head using big lifting columns

Technical data:
Working width 1350 mm
Working thickness 3-130 mm
Fixed working surface height 900 mm
Feed speed from 5 to 30 mt/min
Belt dimensions 1400 x 2620 mm
Working thickness display

Composition:
1° Group Steel Calibrating Roller diameter 280
2° Group Rubber Sanding Roller diameter 300
Cleaning brush - Motor 2 Hp - Suction inlet diameter 160
Total power 57 kW
Compressed air 7-8 bar
Overall dimensions mm 2100 x 2300 x 2400 h
Weight kg 5500
