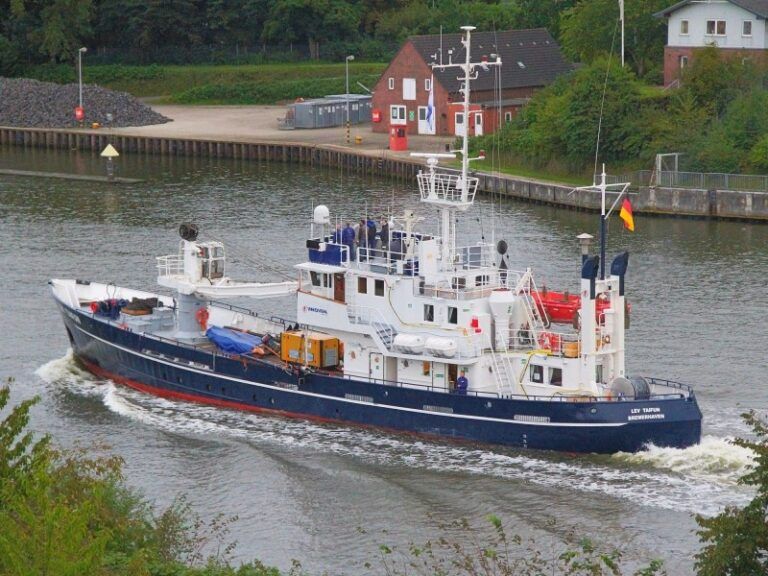

TAIFUN Tonnage: 263 GRT

Length: 41.45 m
Breadth: 8.09 m
Draught: max. 1.8 m
Air draft over basis: 22 m
Displacement: 330 t
Main engines: 2 × MAN type W8V 17.5/22 AmA
Engine power: 257 kW each at 850 rpm
Propulsion: 2 × Voith-Schneider type 14E/90
Propeller blades: 4 blades
Propeller diameter: 1,400 mm
Generators: 2 × AEG G77 29 kW/230 V
Generators: 2 × AEG G97 65 kW/230 V
Generators coupled to main engines
Fuel consumption transit 8–9 knots: 2.1–2.6 m³/day
Fuel consumption standby/port: 0.5 m³/day
Auxiliary engine: Still G206-34 34 kW/230 V
Air compressors: 2 × Hatlapa type L35 F
Deck air compressor: Pramac P18000 18 kVA/400 V
Bunker capacity diesel: 24 m³
Fresh water capacity: 20 m³
Clear deck space: approx. 100 m²
Deck load: 3 t/m²
Load capacity: 20 t
Deck crane: Kampnagel type 9/3.5-8.5
Crane max lifting capacity: 9.0 t
Crane max radius at 9 t: 8.5 m
Crane min radius at 9 t: 3.5 m
Crane max hook height above deck: 10.0 m
Aft mobile A-frame SWL: 1.0 t
Cargo hold present
Accommodation: 3 double crew cabins
Accommodation: 4 single crew cabins
Survey/office room on bridge level
Separate messroom
Service pump
Fire pump
Radar: 2 units
GPS
Echosounder
Electronic chart plotter
Satellite communication
Compass
VHF radios: 3 units
AIS
Navtex
Medium range radio
Gear tray for side scan and multibeam
Additional buoy laying equipment available
