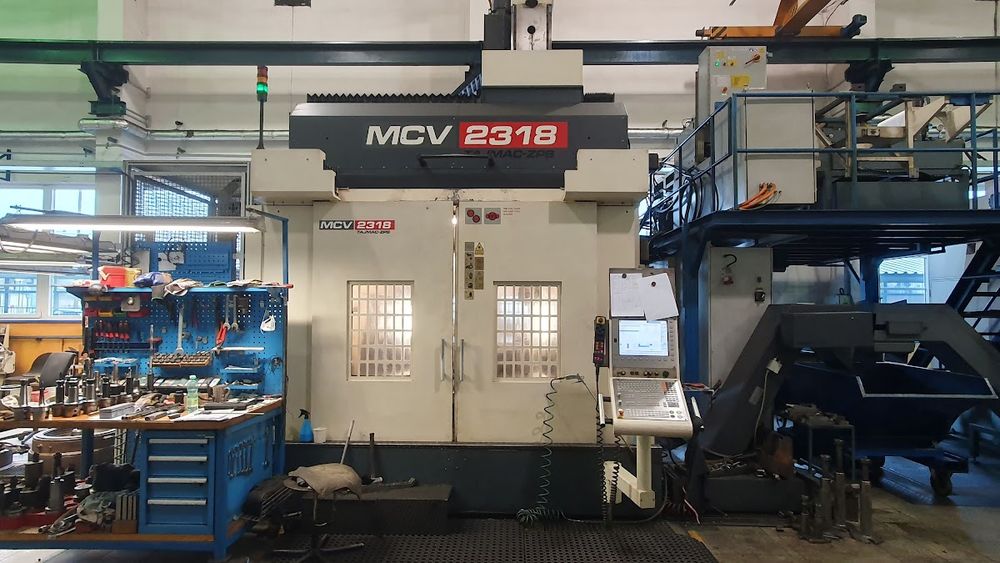

Tajmac Zlín MCV 2318

Year: 2014

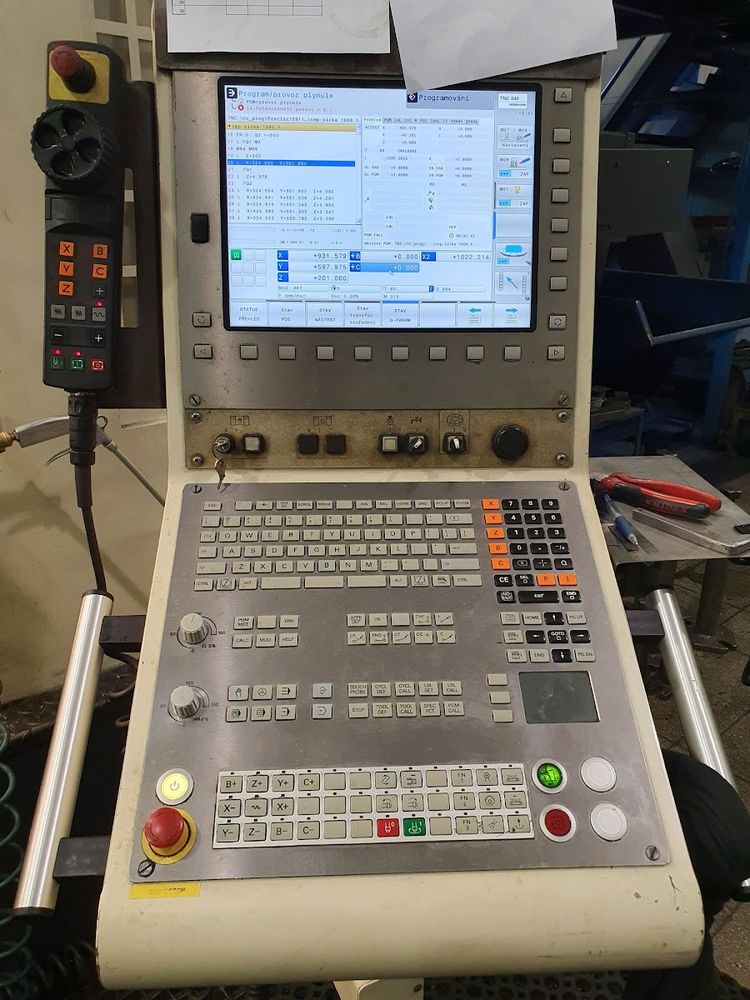

Control system Heidenhain TNC 530

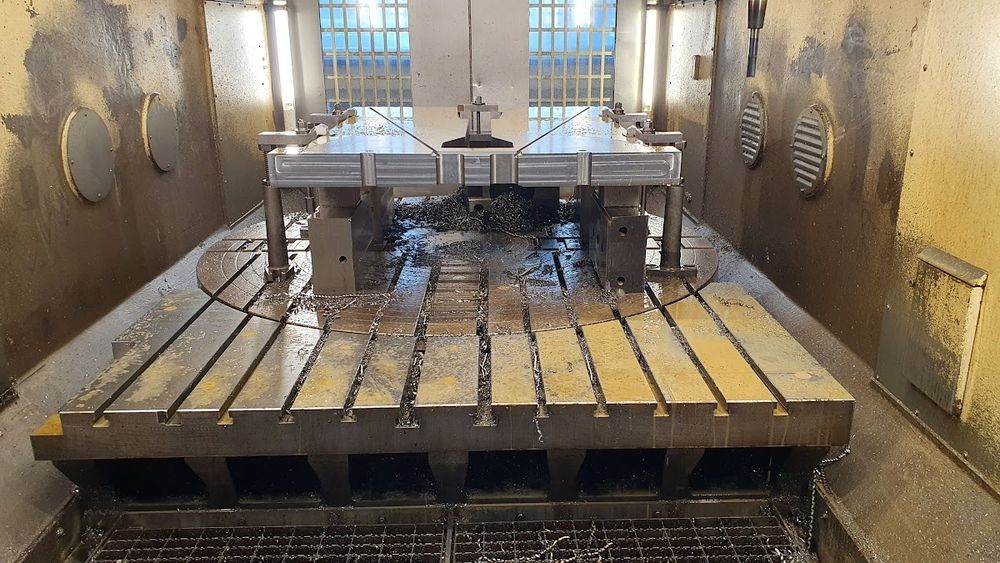

Clamping area of table 1800 (1600x2500) mm
Travel X-axis 2300 mm
Travel Y-axis 1400 mm
Travel Z-axis 1050 mm
Spindle speed 10 - 10000 /min.
Number of driven axes 5
Cooling through spindle YES
Pressure of cooling 40 bar
Spindle taper HSK-A100 .
Max. weight of workpiece 10000/5000 kg
Max. torque of spindle 130/150 Nm
Axis C 360 °

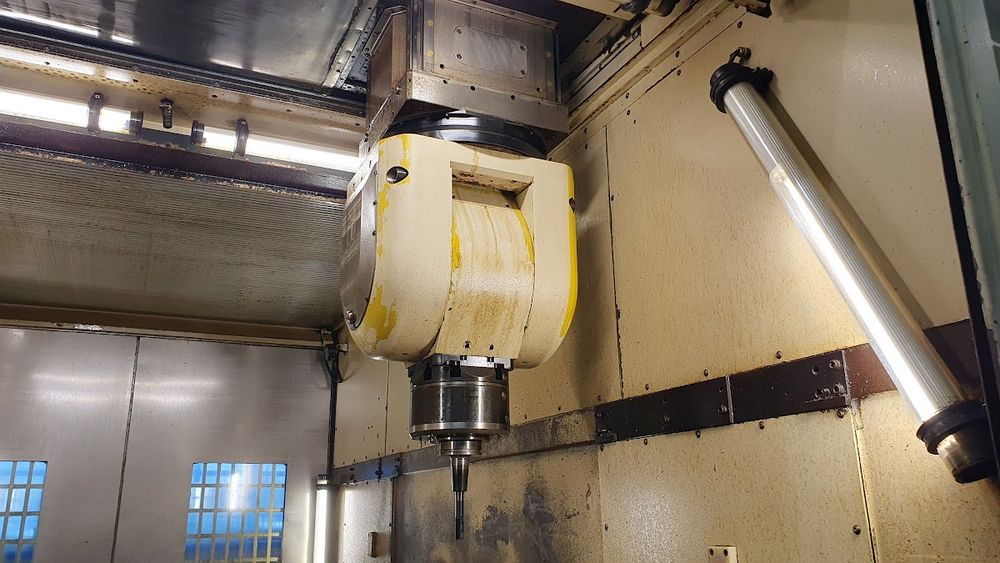

Axis B ±110 °
Rapid feed 50 m/min

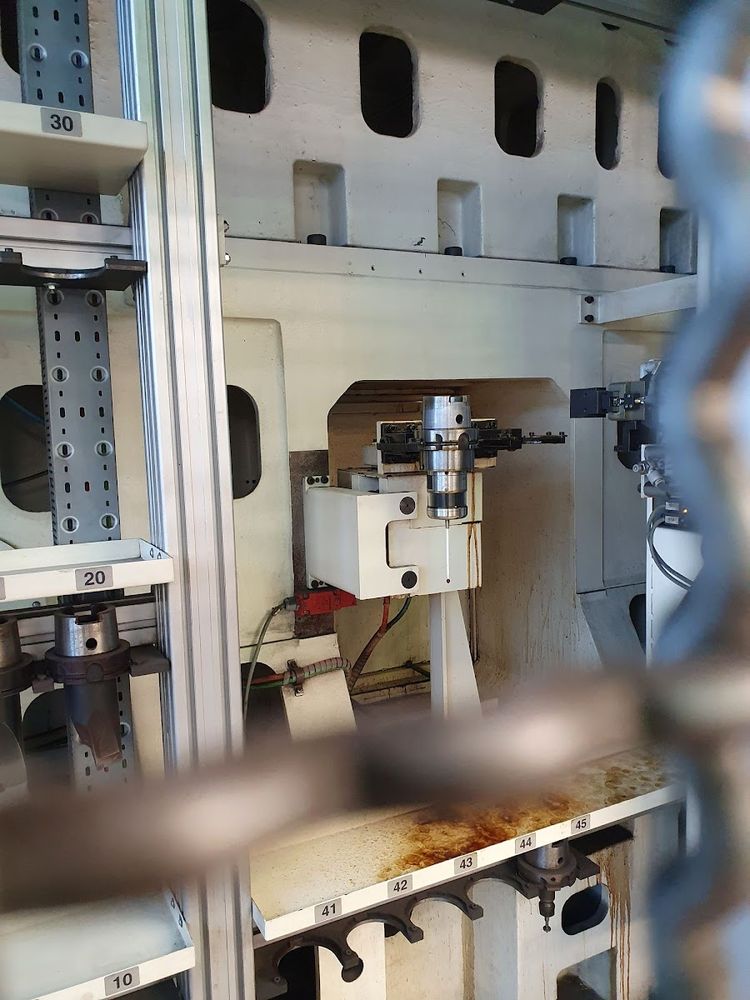

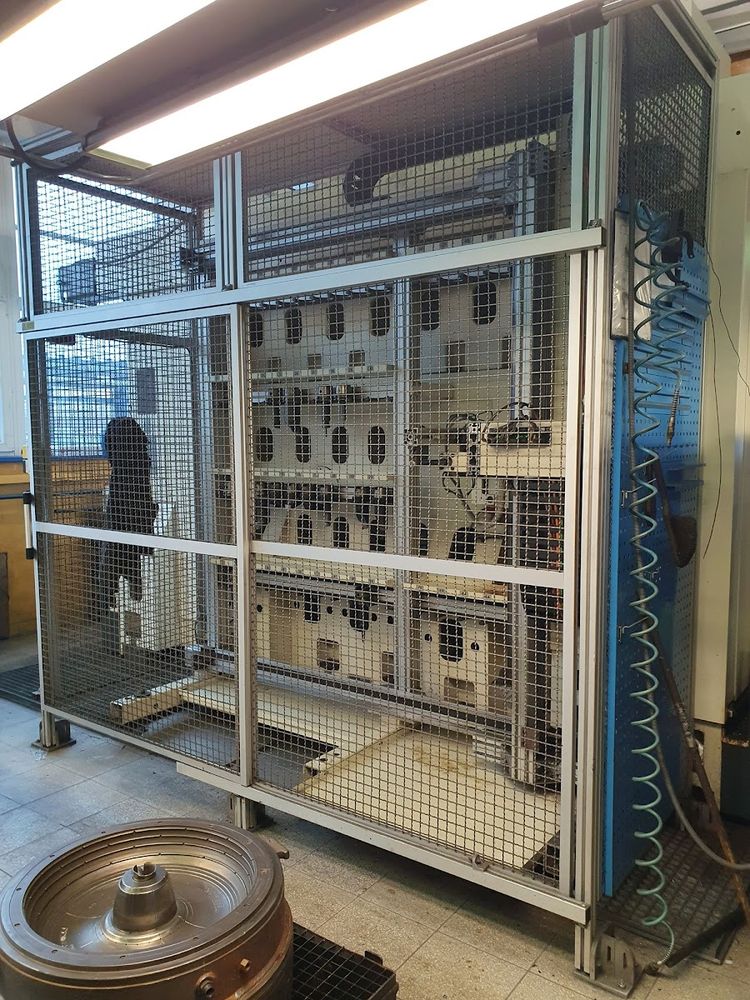

Tool magazine YES
Number of positions in magazine 48
Machine weight 32000 kg
Machine dimensions l x w x h 6640x6000x4800 mm

The machine is in good technical condition, under power, after agreement it is possible to test it.

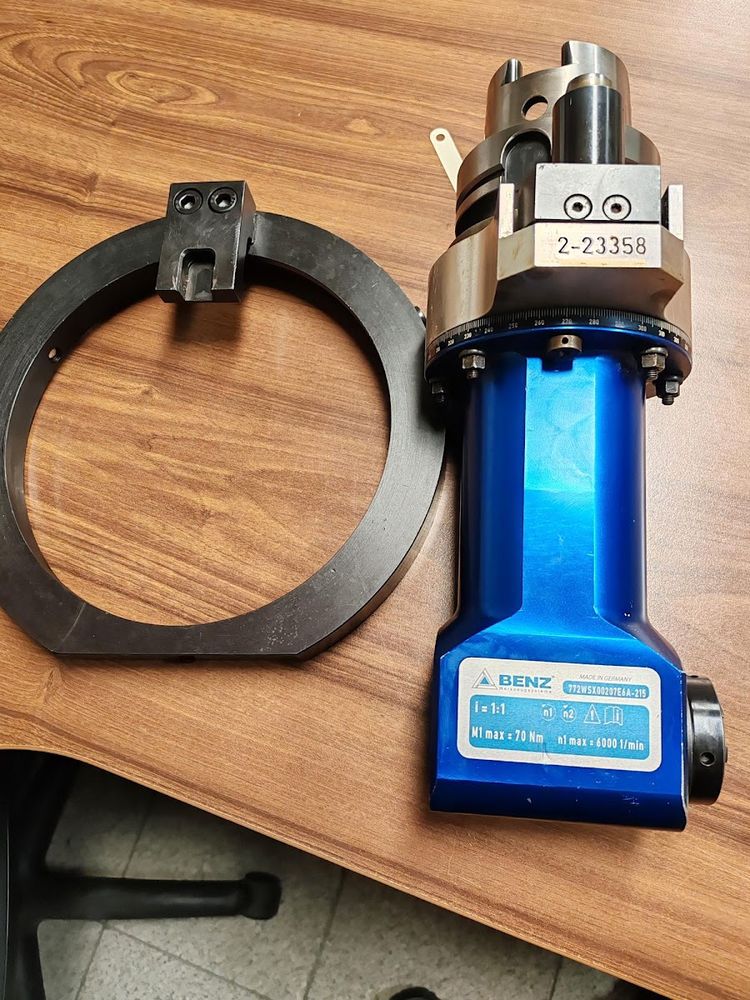

Accessories: tool and workpiece probe
