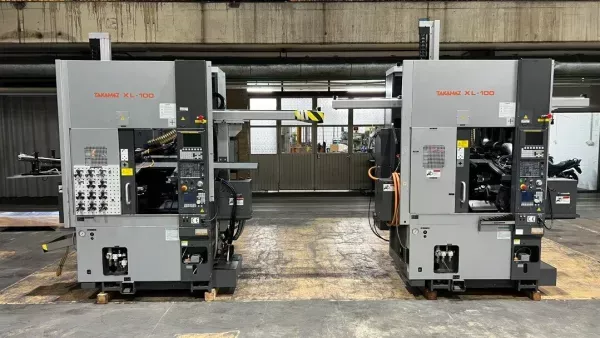

Takamatsu Takamaz Fanuc 0i-TD 4,500 rpm MACHINERY XL-100 (Twin) 2 Axis

X travel 120 mm
Z travel 280 mm
Rapid traverse X 12 m/min
Rapid traverse Z 18 m/min
Feed range 1–5,000 mm/min

Control Takamaz Fanuc 0i-TD
Controlled axes X and Z
Smallest input step 0.001 mm
Command increment X 0.0005 mm
Command increment Z 0.001 mm
Program memory 400 programs
Tool offsets 64 sets
Subprogram call up to 10 repetitions
Interface RS232C
Interface memory card
Interface Ethernet

Optimal turning diameter 60 mm
Optimal turning length 50 mm
Maximum turning diameter over bed 320 mm
Maximum rod diameter ø26 mm
Maximum rod diameter ø35 mm
Maximum turning length 240 mm
Maximum turning diameter 180 mm

Spindle nose JIS A2-5
Spindle bearing ID ø75 mm
Spindle bore ø46 mm
Maximum spindle speed 4,500 rpm

Chuck size 6 inch
Turret 8 stations
Tool holder 20 mm
Drill holder ID ø25 mm

Machine weight per unit 2,100 kg
Machine dimensions 1,360 × 1,360 × 1,730 mm
